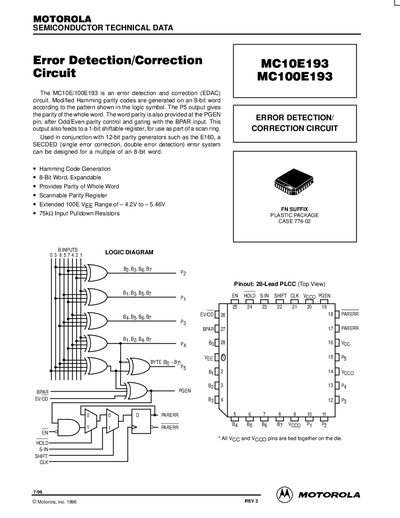

Motorola MC10E193/MC100E193 Error Detection/Correction Circuit Datasheet
The MC10E193 and MC100E193 are error detection and correction (EDAC) circuits designed to generate modified Hamming parity codes for 8-bit words. The circuit provides parity for the whole word at the P5 output and supports a scannable parity register. When used with 12-bit parity generators like the E160, it enables the design of a Single Error Correction, Double Error Detection (SECDED) system.
Read onlineMotorola MC100E193 specifications
| Package Type | 28-Lead PLCC |
|---|---|
| Package Case Number | 776-02 |
| Operating Temperature Range | 0°C to 85°C |
| Input HIGH Current (Typical) | 150 uA |
| Propagation Delay (Bto P1-P4) | 350 ns (Typical) |
| Propagation Delay (Bto P5) | 400 ns (Typical) |
Source: Motorola MC10E193/MC100E193 Error Detection/Correction Circuit Datasheet
All Motorola MC100E193 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the primary function of the MC10E193?
It is an error detection and correction (EDAC) circuit that generates modified Hamming parity codes on an 8-bit word.
From: Motorola MC10E193/MC100E193 Error Detection/Correction Circuit Datasheet
Can this circuit be used for single error correction?
Yes, when used with 12-bit parity generators such as the E160, it can design a SECDED (single error correction, double error detection) error system.
From: Motorola MC10E193/MC100E193 Error Detection/Correction Circuit Datasheet
What type of parity codes are generated?
The circuit generates modified Hamming parity codes on an 8-bit word.
From: Motorola MC10E193/MC100E193 Error Detection/Correction Circuit Datasheet
Can this be used for single error correction?
Yes, it can be designed for a SECDED (single error correction, double error detection) system.
From: Motorola MC10E193/MC100E193 Error Detection/Correction Circuit Datasheet
