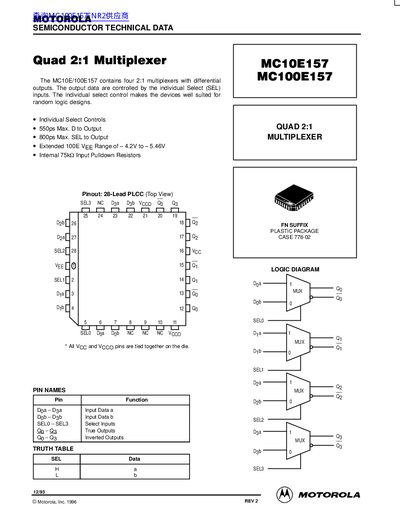

This document is a technical datasheet for the Motorola MC10E157 and MC100E157 integrated circuits. The devices contain four 2:1 multiplexers with differential outputs, designed to control output data via individual Select (SEL) inputs for random logic designs.
| Number of Multiplexers | Four 2:1 multiplexers |
|---|---|
| Output Type | Differential outputs |
| Max Delay Data to Output | 550ps |
| Max Delay SEL to Output | 800ps |
| VEE Range (100E) | -4.2V to -5.46V |
| Input Pulldown Resistors | 75kQ Internal |
The maximum propagation delay from data (D) to output is 550ps.
The MC10E/100E157 contains four 2:1 multiplexers.
The extended VEE range for the 100E version is from -4.2V to -5.46V.
