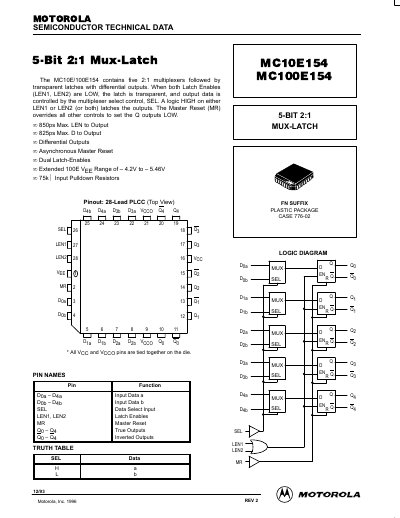

This document is a technical datasheet for the Motorola MC10E154 and MC100E154 integrated circuits. The devices contain five 2:1 multiplexers followed by transparent latches with differential outputs, featuring an asynchronous master reset and dual latch-enables.
| Package Type | 28-Lead PLCC (Case 776-02) |
|---|---|
| Max LEN to Output Delay | 850ps |
| Max D to Output Delay | 825ps |
| Input Pulldown Resistors | 75kQ |
| VEE Range (100E) | -4.2V to -5.46V |
| Max Power Supply Current (10E) | 91 mA |
The Master Reset overrides all other controls to set the Q outputs LOW.
The MC10E/100E154 contains five 2:1 multiplexers followed by transparent latches.
