Start here

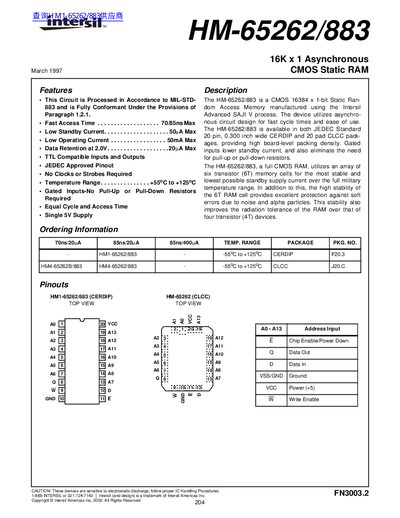

Intersil HM-65262/883 16K x 1 Asynchronous CMOS Static RAM Datasheet
The Intersil HM-65262/883 is a 16K x 1-bit Asynchronous CMOS Static RAM manufactured using the Advanced SAJI V process. It is designed for fast cycle times and ease of use, available in both JEDEC Standard 20 pin CERDIP and 20 pad CLCC packages. The device utilizes a gated circuit design to lower standby current and eliminate the need for pull-up or pull-down resistors.
Read onlineIntersil HM-883 specifications
| Access Time | 70/85ns Max |
|---|---|
| Standby Current | 50uA Max |
| Operating Temperature | -55°C to +125°C |
| Supply Voltage | Single 5V |
| Gate Count | 26256 Gates |
Source: Intersil HM-65262/883 16K x 1 Asynchronous CMOS Static RAM Datasheet
All Intersil HM-883 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
- Intersil HM-65262/883 16K x 1 Asynchronous CMOS Static RAM Datasheet 10 p
- Intersil HM-6642/883 CMOS PROM Datasheet 9 p
- Intersil HM-6617/883 Datasheet 7 p
- Intersil HM-65642/883 CMOS Static RAM Datasheet 11 p
- Intersil HM-6551/883 Datasheet 10 p
- Intersil HM-65162/883 Datasheet 9 p
- Intersil HM-6514/883 Datasheet 9 p
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
Does the device require clocks or strobes?
No, the HM-65262/883 does not require clocks or strobes.
From: Intersil HM-65262/883 16K x 1 Asynchronous CMOS Static RAM Datasheet
What is the data retention supply voltage?
The data retention supply voltage is 2.0V.
From: Intersil HM-65262/883 16K x 1 Asynchronous CMOS Static RAM Datasheet
What supply voltage does the HM-6642/883 require?
It operates from a single 5.0 V supply.
What is the typical access time of the HM-6642/883?
Typical access time is 120 ns, with a maximum of 200 ns.
What is the supply voltage range for the HM-6617/883?
The device operates from +4.5 V to +5.5 V.
What temperature range can the HM-6617/883 operate in?
It is rated for operation from –55 °C up to +125 °C.
