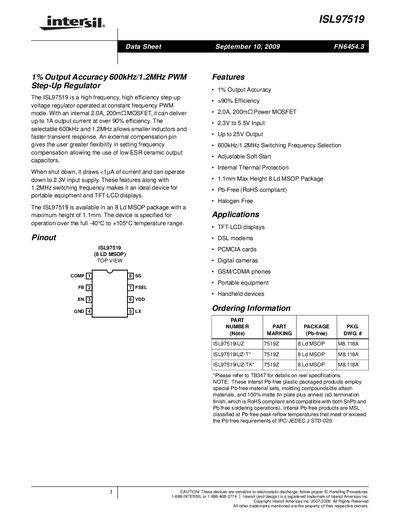

Intersil ISL97519 Step‑Up Regulator Datasheet
The ISL97519 is a high‑frequency, high‑efficiency boost regulator operated in constant‑frequency PWM mode. It integrates a 2.0 A, 200 mΩ MOSFET and delivers up to 1 A output current with over 90 % efficiency. selectable 600 kHz or 1.2 MHz switching allows smaller inductors and fast transient response, while an external compensation pin provides flexibility for load regulation.
The device is offered in an 8‑lead MSOP package (max height 1.1 mm) and is rated for operation from –40 °C to +105 °C. It features a shutdown current of less than 1 pA, soft‑start control, internal thermal protection, and is RoHS‑compliant.
Intersil ISL97519 specifications
| Output Accuracy | 1 % |
|---|---|
| Efficiency | 290 % |
| Internal MOSFET Current Rating | 2.0 A |
| Input Voltage Range | 2.3 V – 5.5 V |
| Maximum Output Voltage | 25 V |
| Switching Frequency Options | 600 kHz / 1.2 MHz |
| Shutdown Quiescent Current | < 1 pA |
| Package Type | 8‑lead MSOP, max height 1.1 mm |
| Operating Temperature Range | –40 °C to +105 °C |
All Intersil ISL97519 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the shutdown current of the ISL97519?
The device draws less than 1 pA of current when shut down.
What input voltage range does the ISL97519 support?
It operates with an input voltage from 2.3 V to 5.5 V.
What is the shutdown current of the ISL97519A?
The device draws less than 1 pA when the EN pin is pulled low, putting it into shutdown.
How can the switching frequency be selected?
Connect the FSEL pin to ground for 620 kHz operation; connect it to VDD (or high) for 1.25 MHz operation.
