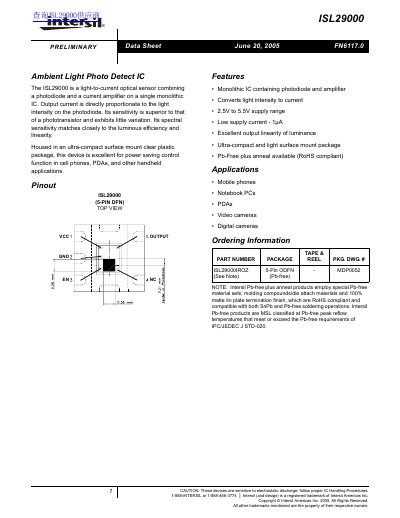

Intersil ISL29000 Ambient Light Photo Detect IC Datasheet
The ISL29000 is a light-to-current optical sensor that combines a photodiode and a current amplifier on a single monolithic IC. The output current is directly proportionate to the light intensity on the photodiode, offering superior sensitivity and linearity compared to phototransistors. It is housed in an ultra-compact surface mount clear plastic package suitable for power saving control functions in cell phones, PDAs, and other handheld applications.
Read onlineIntersil ISL29000 specifications
| Supply Voltage Range | 2.5V to 5.5V |
|---|---|
| Supply Current | 1A |
| Operating Temperature | -40°C to +85°C |
| Maximum Die Temperature | +125°C |
| Storage Temperature | -65°C to +150°C |
| Dark Current | 0.06 µA |
| Package Type | 5-Pin ODFN |
Source: Intersil ISL29000 Ambient Light Photo Detect IC Datasheet
All Intersil ISL29000 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the supply voltage range for the ISL29000?
The device operates with a supply voltage range of 2.5V to 5.5V.
From: Intersil ISL29000 Ambient Light Photo Detect IC Datasheet
What are the typical applications for this IC?
It is designed for power saving control functions in cell phones, PDAs, notebook PCs, video cameras, and digital cameras.
From: Intersil ISL29000 Ambient Light Photo Detect IC Datasheet
What is the supply voltage range for the ISL29000?
The device operates from 2.5 V to 5.5 V.
From: Intersil ISL29000 Ambient Light Photodetector Datasheet
What is the maximum output current the device can handle?
The output current must not exceed 6 mA.
From: Intersil ISL29000 Ambient Light Photodetector Datasheet
