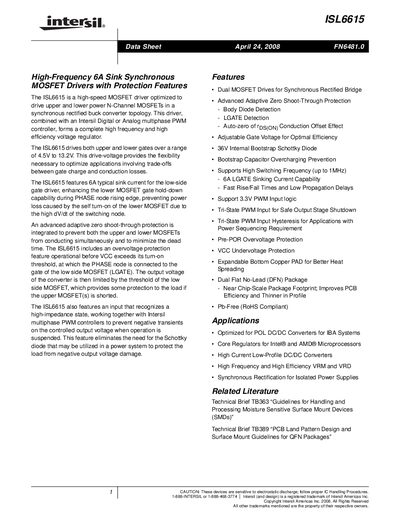

Intersil ISL6615 MOSFET Driver Datasheet
The ISL6615 MOSFET driver from Intersil provides high‑speed, 6 A low‑side sink capability and supports gate‑drive voltages from 4.5 V to 13.2 V. It integrates advanced adaptive zero shoot‑through protection, pre‑POR over‑voltage protection, and a tri‑state PWM input for safe shutdown.
The device is offered in a dual‑flat no‑lead (DFN) package and includes detailed specifications for supply voltages, timing, and thermal performance, making it suitable for synchronous buck converters, VRM applications, and isolated power supplies.
Intersil ISL6615 specifications
| Low‑side sink current | 6 A |
|---|---|
| Maximum operating junction temperature | +125 °C |
| Package type | Dual Flat No‑Lead (DFN) |
All Intersil ISL6615 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the typical low‑side sink current of the ISL6615?
The ISL6615 provides a typical low‑side sink current of 6 A.
What package does the ISL6615 use?
The device is offered in a Dual Flat No‑Lead (DFN) package.
What is the typical sink current of the ISL6615A?
The driver provides a typical sink current of 6 A for the low‑side gate.
What is the maximum switching frequency supported?
The ISL6615A can operate at switching frequencies up to 1 MHz.
