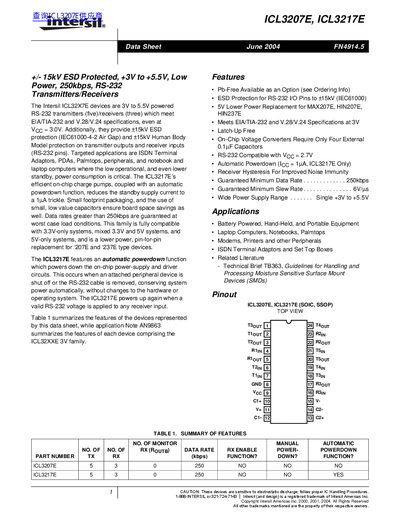

Intersil ICL3207E/ICL3217E RS-232 Transceiver Data Sheet
The Intersil ICL32X7E family includes the ICL3207E and ICL3217E devices, which are low-power RS-232 transmitters and receivers operating from a single +3V to +5.5V supply. These integrated circuits meet EIA/TIA-232 and V.28/V.24 specifications even at 3.0V operation and feature on-chip charge pumps requiring only four external capacitors.
Read onlineIntersil ICL3207 specifications
| Supply Voltage Range | +3V to +5.5V |
|---|---|
| Data Rate (Minimum) | 250kbps |
| ESD Protection Rating | +15kV |
| External Capacitors Required | Four 0.1uF |
Source: Intersil ICL3207E/ICL3217E RS-232 Transceiver Data Sheet
All Intersil ICL3207 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the minimum operating voltage for these transceivers?
The devices meet EIA/TIA-232 specifications even at a supply voltage of 3.0V.
From: Intersil ICL3207E/ICL3217E RS-232 Transceiver Data Sheet
Does the ICL3217E feature automatic powerdown?
Yes, the ICL3217E includes an automatic powerdown function that reduces standby supply current to a 1A trickle.
From: Intersil ICL3207E/ICL3217E RS-232 Transceiver Data Sheet
What is the guaranteed minimum data rate for the ICL3207E?
The device guarantees a minimum data rate of 250 kbps.
From: Intersil ICL3207E ICL3217E RS-232 Transceiver Datasheet
What level of ESD protection do the RS‑232 pins have?
All RS‑232 pins are protected up to +15 kV according to IEC61000‑4‑2.
From: Intersil ICL3207E ICL3217E RS-232 Transceiver Datasheet
What supply voltage range does the ICL3207 operate over?
It operates from a single supply voltage of +3 V to +5.5 V.
How many external capacitors are needed for the charge‑pump circuit?
Only four external 0.1 µF capacitors are required.
