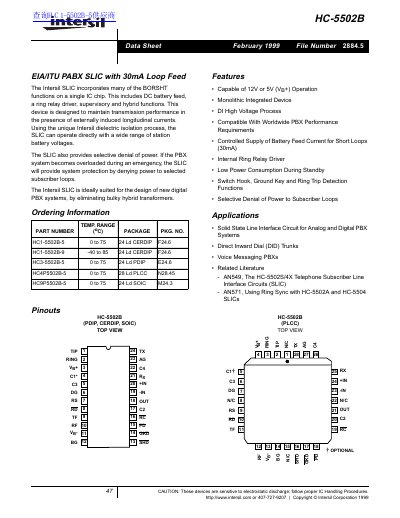

Intersil HC-5502B SLIC Data Sheet
The Intersil HC-5502B is a monolithic integrated device designed as an EIA/TIA PABX SLIC. It incorporates many BORSHT functions on a single IC chip, including DC battery feed, a ring relay driver, supervisory and hybrid functions. The device maintains transmission performance in the presence of externally induced longitudinal currents using Intersil's dielectric isolation process.
Read onlineIntersil HC-5502B specifications
| Supply Voltage (Vg+) | 12V or 5V |
|---|---|
| Operating Temperature Range (HC-5502B-5) | 0°C to 75°C |
| Operating Temperature Range (HC-5502B-9) | -40°C to 85°C |
| Transistor Count | 183 |
All Intersil HC-5502B documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the operating voltage options for the HC-5502B?
The device is capable of operation with either 12V or 5V supply voltages.
Does the HC-5502B include an internal ring relay driver?
Yes, the device incorporates a ring relay driver as one of its integrated functions.
What is the primary application of the HC-5502B1?
It is designed for solid state line interface circuits in analog and digital PBX systems.
From: Intersil HC-5502B1 SLIC Subscriber Line Interface Circuit Datasheet
Does the HC-5502B1 include a ring relay driver?
Yes, it incorporates a ring relay driver as part of its BORSHT functions.
