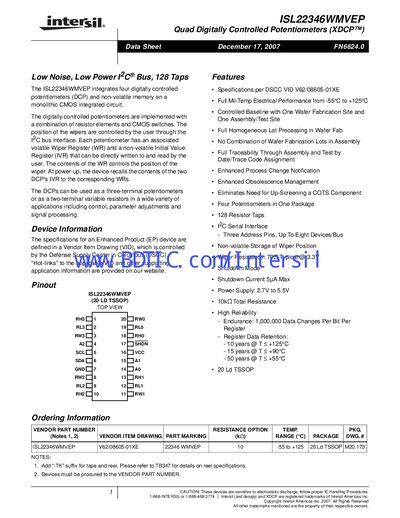

Intersil ISL22346WMVEP Datasheet
The ISL22346WMVEP integrates four digitally controlled potentiometers and non‑volatile memory in a single TSSOP package. Each potentiometer offers 128 resistor taps and can be used as a three‑terminal potentiometer or a two‑terminal variable resistor.
The device operates from 2.7 V to 5.5 V, features a shutdown current of 5 µA max, and retains wiper positions for up to 50 years depending on temperature. It is accessed via an I²C serial bus with up to eight devices per bus.
Intersil ISL22346 specifications
| Supply Voltage | 2.7 V to 5.5 V |
|---|---|
| Total Resistance | 10 kΩ |
| Shutdown Current | 5 µA max |
| Temperature Range | -55 °C to +125 °C |
| Endurance (Data Changes) | 1,000,000 changes per bit |
| Number of Potentiometers | 4 |
| Resistor Taps per Potentiometer | 128 |
Source: Intersil ISL22346WMVEP Datasheet
