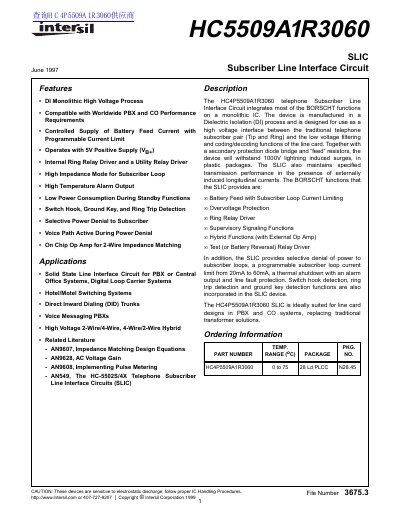

Intersil HC5509A1R3060 Subscriber Line Interface Circuit Datasheet
The Intersil HC5509A1R3060 is a Subscriber Line Interface Circuit (SLIC) manufactured using a Dielectric Isolation (DI) process. It integrates most BORSCHT functions on a monolithic IC to serve as a high-voltage interface between the telephone subscriber pair and low-voltage filtering or coding/decoding functions in line cards.
Key features include controlled supply of battery feed current with programmable limits, internal ring relay and utility relay drivers, and high impedance mode for the subscriber loop. The device supports selective power denial to subscribers while maintaining voice path activity and includes an on-chip operational amplifier for 2-wire impedance matching.
Intersil HC-5509A1 specifications
| Supply Voltage (Vp.) | +5V |
|---|---|
| Loop Current Limit Range | 20 to 60mA |
| Ring Sync Pulse Width | 50 to 500 us |
| Input Offset Voltage | +5 mV |
| Small Signal GBW | 1 MHz |
Source: Intersil HC-5509A1 Subscriber Line Interface Circuit Datasheet
All Intersil HC-5509A1 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the primary application of the HC5509A1R3060?
It is designed for use as a high voltage interface between the traditional telephone subscriber pair and low voltage filtering functions in line card designs.
From: Intersil HC5509A1R3060 Subscriber Line Interface Circuit Datasheet
Does the HC5509A1R3060 include an on-chip operational amplifier?
Yes, it includes an on-chip op amp for 2-wire impedance matching.
From: Intersil HC5509A1R3060 Subscriber Line Interface Circuit Datasheet
What are the BORSCHT functions provided by the HC-5509A1?
The device provides Battery Feed with Subscriber Loop Current Limiting, Overvoltage Protection, Ring Relay Driver, Supervisory Signaling Functions, Hybrid Functions, and Test Relay Driver.
From: Intersil HC-5509A1 Subscriber Line Interface Circuit Datasheet
What is the range for the programmable subscriber loop current limit?
The programmable subscriber loop current limit ranges from 20 to 60mA.
From: Intersil HC-5509A1 Subscriber Line Interface Circuit Datasheet
