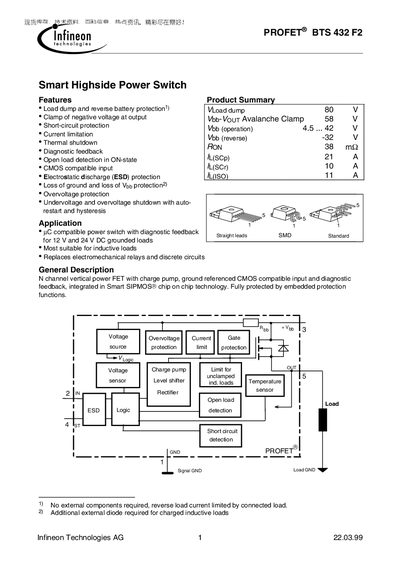

Infineon PROFET BTS432F2 Smart Highside Power Switch Datasheet
The PROFET® BTS432F2 is a smart high‑side power switch designed for 12 V and 24 V DC grounded loads. It integrates a charge‑pump N‑channel MOSFET with CMOS‑compatible input, offering load‑dump, reverse‑battery, over‑/undervoltage, short‑circuit, and ESD protection, as well as diagnostic feedback such as open‑load detection.
The document provides pin definitions, maximum ratings, electrical characteristics, protection functions, truth tables, and package information for the TO‑220AB/5 and SMD versions, enabling designers to replace electromechanical relays with a fully protected semiconductor solution.
Intersil BTS432F2 specifications
| Load dump protection voltage | 66.5 V |
|---|---|
| Power dissipation (DC) | 125 W |
| Operating temperature range | -40 °C to +150 °C |
| ESD protection (HBM) | 2.0 kV |
| Typical load current (self‑limited) | 2 A |
Source: Infineon PROFET BTS432F2 Smart Highside Power Switch Datasheet
All Intersil BTS432F2 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum supply voltage for the BTS432F2?
The device can tolerate up to 63 V supply voltage.
From: Infineon BTS432F2 PROFET Smart Highside Power Switch Datasheet
