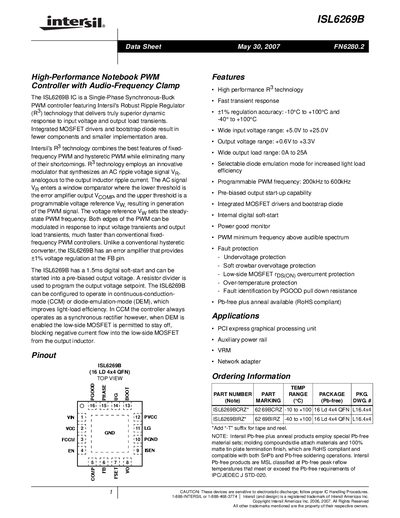

Intersil ISL6269B Datasheet
The ISL6269B is a single‑phase synchronous‑buck PWM controller that uses Intersil's Robust‑Ripple‑Regulator (R°) technology. It integrates MOSFET drivers, a bootstrap diode and a digital soft‑start to reduce component count and improve transient response.
The device supports a wide input voltage range (5 V‑25 V), output voltage range (0.6 V‑3.3 V) and up to 25 A load current. It can operate in continuous‑conduction mode or diode‑emulation mode for better light‑load efficiency, and includes multiple protection features such as undervoltage, overvoltage, over‑current and over‑temperature protection.
Intersil ISL6269 specifications
| Input voltage range | 5.0 V to 25.0 V |
|---|---|
| Output voltage range | 0.6 V to 3.3 V |
| Maximum output current | 25 A |
| Programmable PWM frequency | 200 kHz to 6 MHz |
| Regulation accuracy | ±1 % (−10 °C to +100 °C) |
| Digital soft‑start time | 1.5 ms |
| Operating temperature range | -10 °C to +100 °C |
| Junction temperature range | -55 °C to +150 °C |
Source: Intersil ISL6269B Datasheet
All Intersil ISL6269 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the input voltage range of the ISL6269B?
The controller operates from 5 V up to 25 V input.
How does the ISL6269B achieve fast transient response?
It uses Intersil's R° technology with integrated MOSFET drivers and a bootstrap diode, which reduces component count and improves dynamic response.
What is the input voltage range of the ISL6269A?
The controller operates from +5.0 V up to +25.0 V.
From: Intersil ISL6269A High‑Performance Notebook PWM Controller Data Sheet
What protection features does the ISL6269A include?
It provides undervoltage, overvoltage, over‑current, over‑temperature protection and fault identification via the PGOOD pin.
From: Intersil ISL6269A High‑Performance Notebook PWM Controller Data Sheet
What is the input voltage range of the ISL6269?
The device operates from 7.0 V up to 25.0 V.
How long does the digital soft‑start take?
The soft‑start duration is approximately 1.5 ms.
