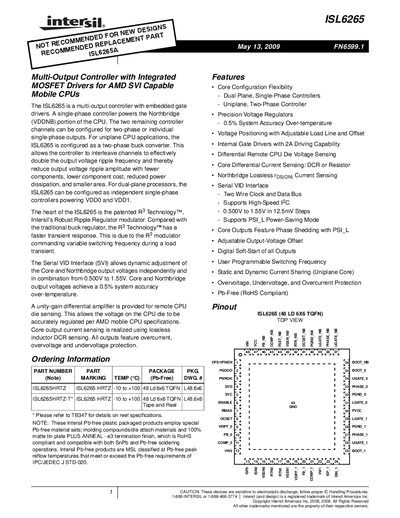

Intersil ISL6265 Datasheet
The ISL6265 is a multi‑output controller with embedded gate drivers designed for AMD mobile CPUs. It can operate as a two‑phase buck converter for uniplane CPUs or as independent single‑phase controllers for dual‑plane processors, offering flexible voltage regulation and high efficiency.
The document includes functional block diagrams, application circuits, absolute maximum ratings, detailed electrical specifications, pin‑routing recommendations, and a package outline drawing, helping designers implement the device in power‑management solutions.
Intersil ISL6265 specifications
| Output Voltage Range (SVI) | 0.500 V to 1.55 V (12.5 mV steps) |
|---|---|
| Core Switching Frequency | 200 kHz – 500 kHz (typical 285‑315 kHz) |
| System Accuracy | 0.5 % over‑temperature |
| Gate‑Driver Current Capability | 2 A |
| Package | 48‑lead 6 × 6 mm TQFN |
All Intersil ISL6265 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What voltage range does the Serial VID Interface (SVI) support?
The SVI can be programmed from 0.500 V to 1.55 V in 12.5 mV steps.
What is the typical switching frequency of the ISL6265A?
Typical core switching frequency is 285 kHz to 315 kHz, with an adjustable range of 200 kHz to 500 kHz.
