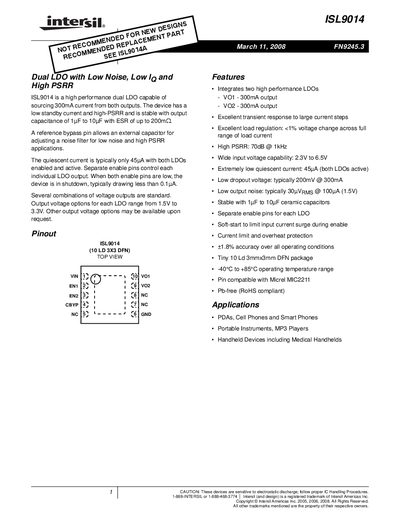

Intersil ISL9014 Dual LDO Datasheet
The ISL9014 integrates two low‑noise LDOs capable of delivering up to 300 mA from each output. It features low standby current (45 µA), high PSRR (70 dB @ 1 kHz), and a soft‑start circuit to limit in‑rush current.
The device operates from 2.3 V to 6.5 V supply voltage, supports output voltages from 1.5 V to 3.3 V, and is supplied in a 10‑lead DFN package. It includes separate enable pins, over‑temperature shutdown, and is RoHS‑compliant.
Intersil ISL9014 specifications
| Continuous Output Current | 300 mA per LDO |
|---|---|
| Quiescent Current (both LDOs active) | 45 µA |
| Dropout Voltage (typical) | 200 mV @ 300 mA |
| PSRR (1 kHz) | 70 dB |
| Output Noise (100 µA load, 1.5 V) | 30 µV RMS |
| Package | 10‑lead DFN 3 mm × 3 mm |
