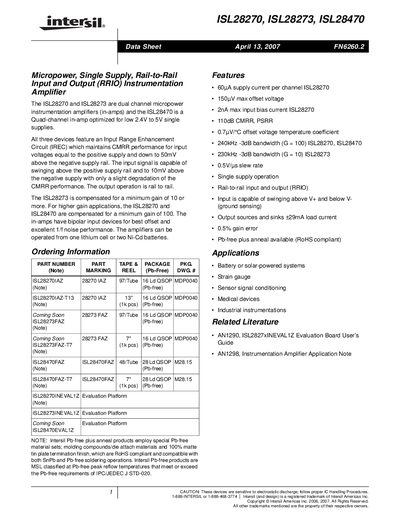

Intersil ISL28270/ISL28273/ISL28470 Instrumentation Amplifier Datasheet
The ISL28270 and ISL28273 are dual‑channel micropower instrumentation amplifiers, while the ISL28470 is a quad‑channel version. All devices operate from a single low‑voltage supply (2.4 V to 5 V), provide rail‑to‑rail input and output, and include an Input Range Enhancement Circuit for high common‑mode performance.
Key specifications include low offset voltage, low input bias current, high CMRR, and up to 29 mA output drive. The parts are offered in 16‑lead and 28‑lead QSOP packages, with additional SSOP and QSOP family dimensions provided. Ordering information, pinouts, absolute maximum ratings, and typical performance curves are included.
Intersil ISL28470 specifications
| Supply Voltage Range | 2.4 V to 5.0 V |
|---|---|
| Gain Error | 0.5 % (typical) |
| Output Current | +29 mA load current |
| Bandwidth (G=100) | 240 kHz (-3 dB) |
| Input Offset Voltage | 150 µV max |
Source: Intersil ISL28270/ISL28273/ISL28470 Instrumentation Amplifier Datasheet
All Intersil ISL28470 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the supply voltage range for the ISL28270/ISL28470?
The devices operate from 2.4 V up to 5.0 V.
From: Intersil ISL28270/ISL28273/ISL28470 Instrumentation Amplifier Datasheet
How much output current can the amplifiers drive?
They can source and sink up to +29 mA load current.
From: Intersil ISL28270/ISL28273/ISL28470 Instrumentation Amplifier Datasheet
What is the maximum input offset voltage of the ISL28470?
The ISL28470 has an input offset voltage of less than 150 µV.
What package does the ISL28470 use?
It is supplied in a 28‑lead QSOP package.
