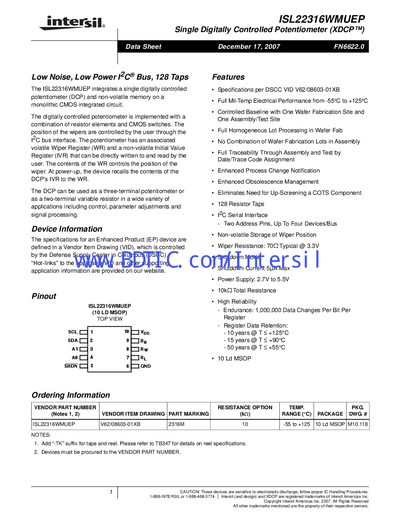

Intersil ISL22316WMUEP Datasheet
The ISL22316WMUEP integrates a single digitally controlled potentiometer (DCP) and non‑volatile memory on a monolithic CMOS IC. It can be used as a three‑terminal potentiometer or a two‑terminal variable resistor, featuring a serial I²C interface, 128 resistor taps, and non‑volatile storage of the wiper position.
The device is supplied in a 10‑lead Mini Small Outline Plastic (MSOP) package, operates from 2.7 V to 5.5 V, and is qualified for military‑temperature operation from –55 °C to +125 °C. Ordering information, pin descriptions, and mechanical dimensions are provided in the datasheet.
Intersil ISL22316 specifications
| Wiper Resistance | 70Ω typical @ 3.3 V |
|---|---|
| Power Supply Voltage | 2.7 V to 5.5 V |
| Total Resistance | 10 kΩ |
| Operating Temperature Range | -55 °C to +125 °C |
| Endurance | 1,000,000 data changes per bit |
| Resistor Taps | 128 |
Source: Intersil ISL22316WMUEP Datasheet
