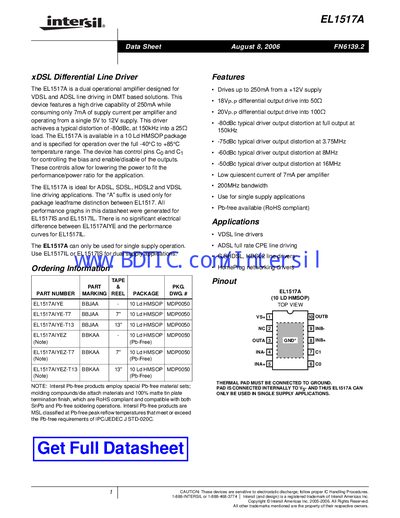

Intersil EL1517A Datasheet
The EL1517A is a dual operational amplifier designed for VDSL and ADSL line driving in DMT‑based solutions. It offers a high drive capability of up to 250 mA from a +12 V supply, low quiescent current of 7 mA per amplifier, and typical distortion of –80 dBc at 150 kHz.
The device is supplied in a 10 Ld HMSOP package, operates over a –40 °C to +85 °C temperature range, and is RoHS‑compliant with Pb‑free materials. Pinout information, ordering codes, and thermal‑pad grounding requirements are also included in the sheet.
Intersil EL1517 specifications
| Maximum drive current | 250 mA |
|---|---|
| Quiescent current per amplifier | 7 mA |
| Supply voltage range | 5 V to 12 V |
| Bandwidth | 200 MHz |
| Typical distortion at 150 kHz | -80 dBc |
| Differential output drive into 50 Ω | 18 Vₚ₋ₚ |
| Differential output drive into 1000 Ω | 20 Vₚ₋ₚ |
| Operating temperature range | -40 °C to +85 °C |
| Package type | 10 Ld HMSOP |
Source: Intersil EL1517A Datasheet
