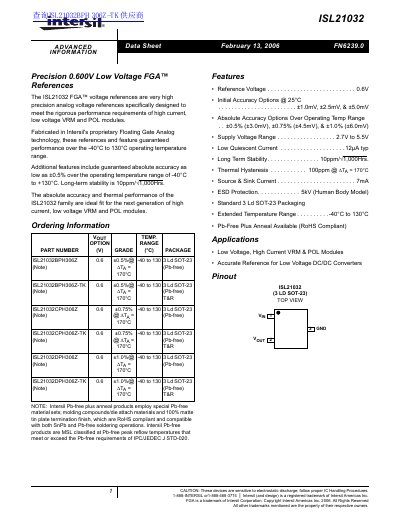

Intersil ISL21032 Precision Voltage Reference Datasheet
The ISL21032 is an advanced precision analog voltage reference fabricated in Intersil's proprietary Floating Gate Analog (FGA) technology. It provides a stable 0.6V output specifically designed for high-current, low-voltage VRM and POL modules. The device features guaranteed absolute accuracy as low as +0.5% over the operating temperature range of -40°C to +130°C.
Read onlineIntersil ISL21032 specifications
| Output Voltage | 0.600V |
|---|---|
| Absolute Accuracy Options Over Operating Temp Range | +0.5% (+3.0mV), +0.75% (+4.5mV), & +1.0% (+6.0mV) |
| Supply Voltage Range | 2.7V to 5.5V |
| Low Quiescent Current | 12uA typ |
| Long Term Stability | 40ppm/V1, OOOHTrs. |
| Thermal Hysteresis | 100ppm @ ATa = 170°C |
| Source & Sink Current | 7mA |
| Extended Temperature Range | -40°C to +130°C |
Source: Intersil ISL21032 Precision Voltage Reference Datasheet
All Intersil ISL21032 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the output voltage of the ISL21032?
The device provides a precision 0.6V low-voltage reference.
From: Intersil ISL21032 Precision Voltage Reference Datasheet
What is the operating temperature range for this part?
The device operates over an extended temperature range of -40°C to +130°C.
From: Intersil ISL21032 Precision Voltage Reference Datasheet
What is the output voltage of the ISL21032?
The device provides a standard 0.6V output reference.
From: Intersil ISL21032 Precision Low Voltage FGA Reference Datasheet
What is the supply voltage range for this part?
The operating input voltage range is from 2.7V to 5.5V.
From: Intersil ISL21032 Precision Low Voltage FGA Reference Datasheet
