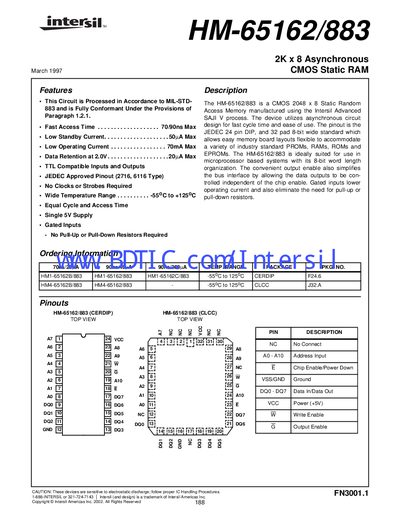

The HM-65162/883 is a CMOS 2048 x 8 Static Random Access Memory manufactured using the Intersil Advanced SAJI V process. The device utilizes asynchronous circuit design for fast cycle time and ease of use.
This document describes the HM-65162/883 CMOS static RAM, a 2048 × 8 bit memory device designed for fast cycle times and low power consumption. It includes pin descriptions, package options (JEDEC 24‑pin DIP and 32‑pad CLCC), and handling precautions.
Detailed electrical performance data are provided, covering absolute maximum ratings, operating conditions, timing parameters for read and write cycles, data‑retention requirements, and thermal information. The sheet also lists applicable sub‑groups and quality certifications for Intersil products.
| Access time | 70 ns typical, 90 ns max |
|---|---|
| Operating current | 70 mA max |
| Operating temperature range | -55 °C to +125 °C |
| Package type | JEDEC 24‑pin DIP, 32‑pad CLCC |
| Supply voltage | Single 5 V |
| Input/Output style | Gated inputs, no pull‑up/down resistors required |
The device has a fast access time of 70 ns typical and up to 90 ns maximum.
It operates from –55 °C to +125 °C.
The device uses a single 5 V supply.
