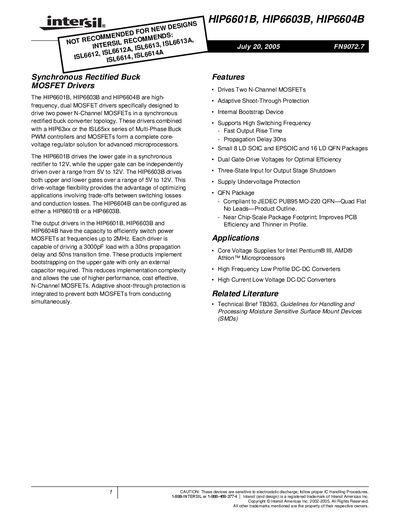

Intersil HIP6601B/HIP6603B/HIP6604B Datasheet
The HIP6601B, HIP6603B and HIP6604B are high‑frequency dual MOSFET drivers designed for synchronous‑rectified buck converters. They can drive two N‑Channel power MOSFETs and support flexible gate‑drive voltages ranging from 5 V to 12 V.
Key features include adaptive shoot‑through protection, internal bootstrap, fast output rise time (30 ns propagation delay, 50 ns transition), and operation up to 2 MHz. The devices are offered in 8‑lead SOIC, 8‑lead EPSOIC and 16‑lead QFN packages and meet JEDEC QFN specifications.
Intersil HIP6604 specifications
| Propagation Delay | 30 ns |
|---|---|
| Transition Time | 50 ns |
| Maximum Switching Frequency | 2 MHz |
| Available Packages | 8‑lead SOIC, 8‑lead EPSOIC, 16‑lead QFN |
| Maximum Junction Temperature (Plastic Package) | 150 °C |
| Input Voltage Range (Vpyy) | 0.3 V to 7 V |
All Intersil HIP6604 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum switching frequency of the HIP6601B/3B/4B drivers?
The drivers can operate at frequencies up to 2 MHz.
What is the propagation delay of these MOSFET drivers?
The propagation delay is specified as 30 ns.
What is the maximum switching frequency of the HIP6601A/6603A/6604 drivers?
The drivers can switch power MOSFETs at frequencies up to 2 MHz.
From: Intersil HIP6601A / HIP6603A / HIP6604 Dual MOSFET Driver Datasheet
What protection prevents both MOSFETs from conducting at the same time?
Adaptive shoot‑through protection is integrated to prevent simultaneous conduction of the upper and lower MOSFETs.
From: Intersil HIP6601A / HIP6603A / HIP6604 Dual MOSFET Driver Datasheet
What is the maximum switching frequency of the HIP6601B/6603B/6604B drivers?
The drivers can operate at frequencies up to 2 MHz.
From: Intersil HIP6601B/HIP6603B/HIP6604B Dual MOSFET Driver Datasheet
What is the typical propagation delay for these drivers?
The typical propagation delay is about 30 ns.
From: Intersil HIP6601B/HIP6603B/HIP6604B Dual MOSFET Driver Datasheet
