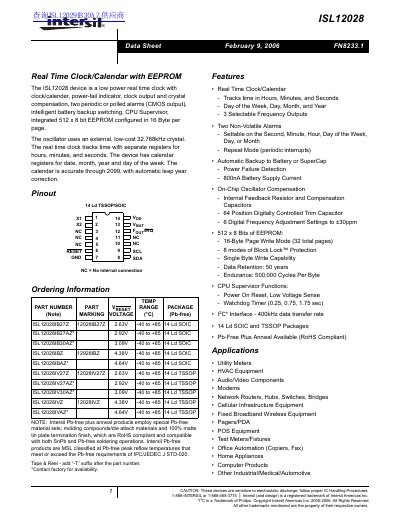

Intersil ISL12028 Real Time Clock/Calendar with EEPROM Datasheet
The ISL12028 is a low power real time clock with calendar, power-fail indicator, clock output, and crystal compensation. It features an integrated 512 x 8 bit EEPROM configured in 16 Byte per page mode and supports two periodic or polled alarms with CMOS output.
The device includes intelligent battery backup switching to maintain timekeeping during main supply failures, a CPU Supervisor function with watchdog timer and low voltage sense, and on-chip oscillator compensation for improved accuracy. The calendar is accurate through the year 2099 with automatic leap year correction.
Intersil ISL12028 specifications
| Real Time Clock Accuracy | Accurate through 2099 with automatic leap year correction |
|---|---|
| EEPROM Capacity | 512 x 8 bits (32 total pages) |
| Alarm Types | Two Non-Volatile Alarms |
| EEPROM Endurance | 500,000 Cycles Per Byte |
| Data Retention Temperature | <75°C for 50 Years |
Source: Intersil ISL12028 Real Time Clock/Calendar with EEPROM Datasheet
All Intersil ISL12028 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum operating temperature range?
The device operates from -40°C to +85°C.
From: Intersil ISL12028 Real Time Clock/Calendar with EEPROM Datasheet
Does the ISL12028 include a watchdog timer?
Yes, it includes CPU Supervisor Functions with a Watchdog Timer.
From: Intersil ISL12028 Real Time Clock/Calendar with EEPROM Datasheet
What is the maximum data retention time for the EEPROM?
The EEPROM data retention is 50 years at temperatures below +75C.
From: Intersil ISL12028 Real Time Clock/Calendar with EEPROM Datasheet
What is the maximum I2C data transfer rate?
The device supports an I2C interface with a maximum data transfer rate of 400kHz.
From: Intersil ISL12028 Real Time Clock/Calendar with EEPROM Datasheet
What is the operating temperature range?
The device operates from -40°C to +85°C.
From: Intersil ISL12028 Real Time Clock/Calendar with EEPROM Datasheet
Does the ISL12028 include an EEPROM?
Yes, it includes an integrated 512 x 8 bit EEPROM.
From: Intersil ISL12028 Real Time Clock/Calendar with EEPROM Datasheet
