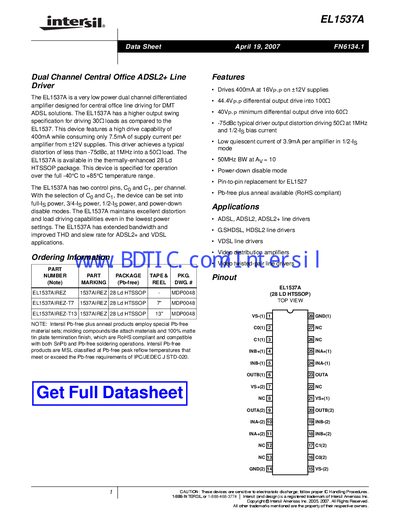

Intersil EL1537A Dual Channel ADSL2+ Line Driver Datasheet
The EL1537A is a very low power dual‑channel differentiated amplifier designed for central‑office line driving in DMT ADSL solutions. It offers a high drive capability of 400 mA while consuming only 7.5 mA per amplifier from a +12 V supply and provides typical distortion of less than –75 dBc at 1 MHz into a 50 Ω load.
The device includes two control pins per channel, allowing full‑Ig, 3/4‑Ig, 1/2‑Ig, and power‑down disable modes. It maintains excellent distortion and load‑driving performance even at the lowest power settings and is specified for operation over –40 °C to +85 °C.
Intersil EL1537 specifications
| Output drive current | 400 mA at 16 Vpp on +12 V supplies |
|---|---|
| Differential output drive (100 Ω load) | 44.4 Vpp |
| Minimum differential output drive (60 Ω load) | 40 Vpp |
| Typical distortion | –75 dBc at 1 MHz into 50 Ω |
| Quiescent current (1/2‑Ig mode) | 3.9 mA per amplifier |
| Bandwidth | 50 MHz |
| Supply current per amplifier | 7.5 mA from +12 V |
| Operating temperature range | –40 °C to +85 °C |
Source: Intersil EL1537A Dual Channel ADSL2+ Line Driver Datasheet
All Intersil EL1537 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum output drive current of the EL1537A?
The EL1537A can drive 400 mA at 16 Vpp on a +12 V supply.
From: Intersil EL1537A Dual Channel ADSL2+ Line Driver Datasheet
What is the typical distortion performance of the EL1537A?
Typical driver output distortion is –75 dBc at 1 MHz into a 50 Ω load.
From: Intersil EL1537A Dual Channel ADSL2+ Line Driver Datasheet
What is the maximum drive current of the EL1537?
The EL1537 can drive up to 400 mA at 16 V p‑p on a +12 V supply.
From: Intersil EL1537 Dual Channel ADSL2+ Line Driver Datasheet
What is the quiescent current per amplifier?
Each amplifier has a low quiescent current of 3.9 mA.
From: Intersil EL1537 Dual Channel ADSL2+ Line Driver Datasheet
