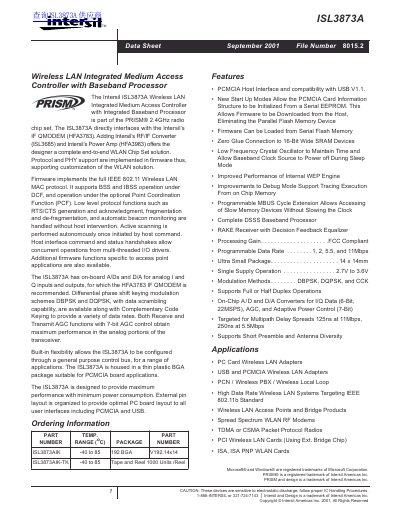

Intersil ISL3873A Wireless LAN Integrated Medium Access Controller Datasheet
The Intersil ISL3873A is a Wireless LAN Integrated Medium Access Controller with an Integrated Baseband Processor, designed as part of the PRISM 2.4GHz radio chip set. It directly interfaces with the Intersil IF QMODEM (HFA3783) and supports the full IEEE 802.11 Wireless LAN MAC protocol, including BSS and IBSS operation under DCF and optional PCF.
The device features a complete DSSS Baseband Processor, a RAKE Receiver with Decision Feedback Equalizer, and supports data rates of 1, 2, 5.5, and 11 Mbps. It includes on-chip A/D and D/A converters for I/Q data, AGC, and adaptive power control. The ISL3873A is housed in a thin plastic BGA package (14x14mm) and operates on a single supply of 2.7V to 3.6V.
Intersil ISL3873 specifications
| Data Rates | 1, 2, 5.5, and 11Mbps |
|---|---|
| Modulation Methods | DBPSK, DQPSK, and GCK |
| Supply Voltage | 2.7V to 3.6V |
| Package Size | 14x 14mm |
| On-Chip A/D and D/A | 6-Bit, 22MSPS |
| AGC Control | 7-Bit |
Source: Intersil ISL3873A Wireless LAN Integrated Medium Access Controller Datasheet
All Intersil ISL3873 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What data rates does the ISL3873A support?
The ISL3873A supports programmable data rates of 1, 2, 5.5, and 11 Mbps.
From: Intersil ISL3873A Wireless LAN Integrated Medium Access Controller Datasheet
What is the operating voltage range for the ISL3873A?
The device operates on a single supply voltage ranging from 2.7V to 3.6V.
