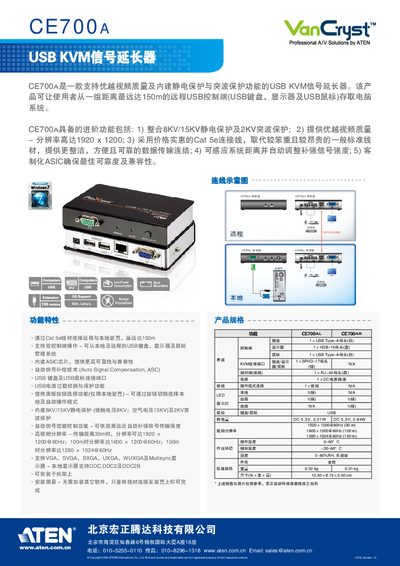

CE700A is a USB KVM signal extender that supports superior video quality and built-in electrostatic protection and surge protection. The product allows users to access computer systems from a set of remote USB control units (USB keyboard, display and USB mouse) at a distance of up to 150m
The CE700A is a USB KVM signal extender that supports up to 150 m of USB extension and high‑resolution video transmission up to 1920 × 1200 @ 60 Hz. It includes built‑in 8 kV/15 kV electrostatic discharge protection and 2 kV surge protection, and uses a Cat‑5e cable for reliable data transfer.
Installation is straightforward: connect the Cat‑5e cable to the device, mount it on a rack if needed, and attach the USB Type‑A and video connectors. The unit operates from a 5.3 V DC supply with a power consumption of about 2.3 W and works within an ambient temperature range of 0‑50 °C. This manual is written in Chinese.
| Maximum USB extension distance | 150 m |
|---|---|
| Maximum video resolution | 1920 × 1200 @ 60 Hz |
| Supported video standards | VGA, SVGA, SXGA, UXGA, WUXGA, Multisync |
| Power consumption | 2.31 W at 5.3 V |
| ESD protection | 8 kV/15 kV |
| Surge protection | 2 kV |
| Dimensions | 12.50 × 8.15 × 2.50 cm |
| Operating temperature range | 0‑50 °C |
The CE700A can extend USB signals up to 150 meters.
