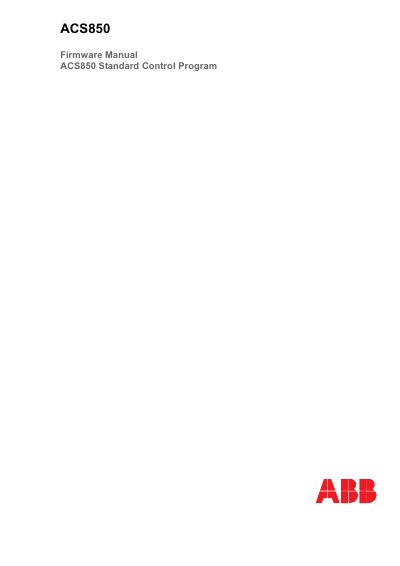

ABB ACS850 Standard Control Program Firmware Manual
This manual describes the ACS850 drive's standard control program firmware, covering compatibility, safety instructions, and the intended audience. It includes chapters on the control panel, operating modes, program features, parameters, and various control interfaces.
The document also contains application macros, motor control details, maintenance procedures, energy optimisation, fieldbus communication, drive‑to‑drive linking, and references for further product support and training.
ABB ACS850 specifications
| Power range (module 0.37‑45 kW) | 0.37 to 45 kW |
|---|---|
| Power range (module 55‑160 kW) | 55 to 160 kW (75 to 200 hp) |
| Power range (module 200‑500 kW) | 200 to 500 kW (250 to 600 hp) |
| Power range (module 400‑560 kW) | 400 to 560 kW (450 to 700 hp) |
| Compatible control program version | UIFI2300 and later |
All ABB ACS850 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
- ABB ACS355/ACS850/ACS880/ACSM1/ACS550-01/ACS800 Drives Quick Start Guide for Siemens PLCs 139 p
- ABB ACS850 Control Panel User's Guide 44 p
- ABB ACS850 Control Panel User's Guide 44 p
- ABB ACS850 Standard Control Program Firmware Manual 371 p
- ABB ACS850 Control Panel User's Guide 45 p
- ABB ACS850 Standard Control Program Manual 326 p
Questions answered in these manuals
Which ABB drive models are supported by this guide?
The guide supports ACS355, ACS850, ACS880, ACSM1, ACS550-01, and ACS800 drives.
From: ABB ACS355/ACS850/ACS880/ACSM1/ACS550-01/ACS800 Drives Quick Start Guide for Siemens PLCs
What PLCs are compatible with this guide?
The guide supports Siemens S7-300, S7-400, S7-1200, and S7-1500 PLCs.
From: ABB ACS355/ACS850/ACS880/ACSM1/ACS550-01/ACS800 Drives Quick Start Guide for Siemens PLCs
What is the purpose of using a control panel with an ACS850 drive?
You use a control panel to control the ACS850, read status data, and adjust parameters.
What does the green Status LED indicate?
The Status LED shows Green for normal operation.
Who is the intended audience for this manual?
This manual is intended for persons who install and use the panel.
How do I switch between local and remote control?
Press the LOC/REM key to change between local and remote control of the drive.
