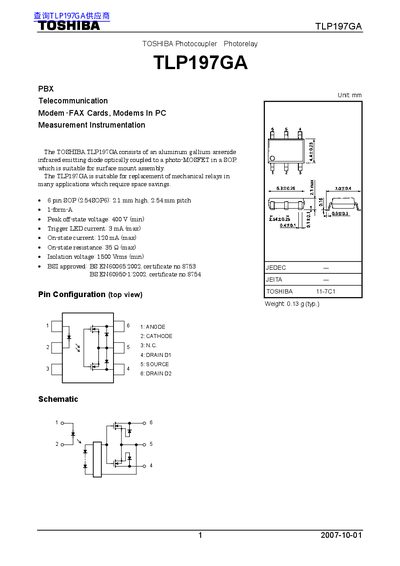

Toshiba TLP197GA Photocoupler Datasheet
The TLP197GA is a GaAs infrared emitting diode optically coupled to a photo‑MOSFET in a 6‑pin SOP package, intended for surface‑mount use and as a replacement for mechanical relays where space savings are needed. It is used in a variety of electronics such as computers, measuring equipment, and industrial robotics.
Key specifications include a peak off‑state voltage of 400 V, trigger LED current up to 3 mA, on‑state current of 120 mA, on‑state resistance of 35 Ω, and an isolation voltage of 1500 Vrms. Recommended operating conditions specify a supply voltage up to 320 V, forward current up to 25 mA, and an ambient temperature range of –20 °C to 65 °C.
Toshiba TLP197GA specifications
| Peak off‑state voltage | 400 V (min) |
|---|---|
| Trigger LED current | 3 mA (max) |
| On‑state resistance | 35 Ω (max) |
| Isolation voltage | 1500 Vrms (min) |
| Forward current (absolute max) | 50 mA |
| Supply voltage (recommended max) | 320 V |
All Toshiba TLP197GA documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the absolute maximum forward current?
The absolute maximum forward current is 50 mA.
What is the recommended operating temperature range?
The recommended operating temperature range is –20 °C to 65 °C.
What is the maximum off‑state voltage for the TLP197GA?
The device is rated for a peak off‑state voltage of 400 V (minimum).
What supply voltage should be used with the TLP197GA?
The recommended supply voltage (Vpp) is up to 320 V.
What is the peak off‑state voltage rating?
The device is rated for a minimum peak off‑state voltage of 400 V.
What operating temperature range is recommended?
Recommended operating temperature is –20 °C to 65 °C.
