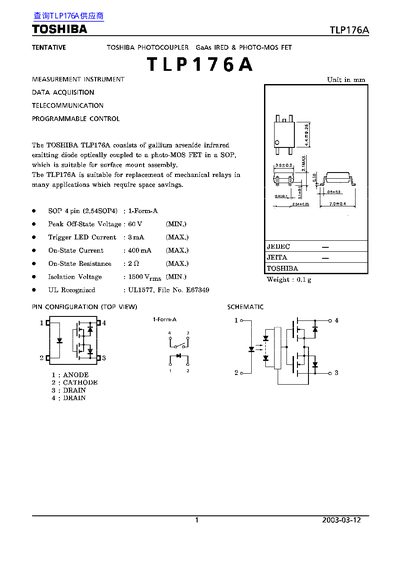

Toshiba TLP176A Optocoupler Datasheet
The TLP176A is a gallium‑arsenide infrared LED optically coupled to a photo‑MOS FET in a 4‑pin SOP package, intended for surface‑mount assembly and replacement of mechanical relays where space savings are needed. It is suitable for general electronics applications such as computers, measuring equipment, and industrial robotics.
The document lists maximum ratings, recommended operating conditions, individual and coupled electrical characteristics, isolation and switching specifications, and restrictions on product use. Key parameters include a 60 V off‑state voltage, 400 mA on‑state current, 11.5 kV isolation voltage, and typical turn‑on/off times under 1 µs.
Toshiba TLP176A specifications
| Peak Off‑State Voltage | 60 V (MIN) |
|---|---|
| On‑State Current | 400 mA (MAX) |
| Isolation Voltage | 11 500 V (MIN) |
| Forward Current (Maximum Rating) | 50 mA |
| Supply Voltage (Recommended) | 48 V |
All Toshiba TLP176A documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum forward current rating of the TLP176A?
The maximum forward current rating is 50 mA.
What isolation voltage does the TLP176A provide?
The device provides a minimum isolation voltage of 11 500 V.
What is the maximum forward current rating for the TLP176A?
The maximum forward current is 50 mA.
What is the recommended supply voltage for the device?
The recommended supply voltage is 48 V.
