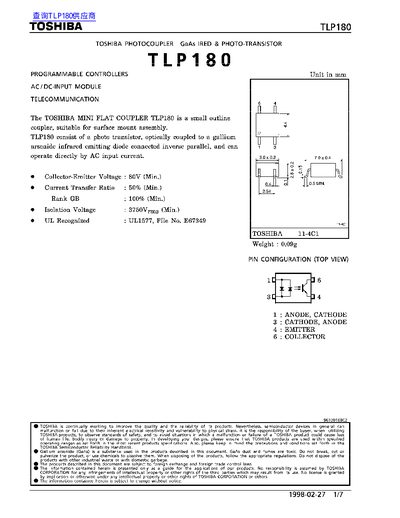

Toshiba TLP180 Optocoupler Datasheet
The TLP180 is a miniature flat optocoupler that integrates a GaAs infrared emitting diode and a photo‑transistor in a surface‑mount package. It is designed for use in AC/DC input modules and telecommunications applications.
The document lists maximum ratings, recommended supply voltages, forward current limits, isolation specifications, and switching performance, enabling designers to select appropriate operating conditions and ensure reliable operation.
Toshiba TLP180 specifications
| Collector‑Emitter Voltage (VCEO) | 80 V (Min.) |
|---|---|
| Current Transfer Ratio (CTR) | 50 % (Min.) |
| Isolation Voltage | 8750 V (Min.) |
| Forward Current IF (RMS) | 50 mA |
| Power Dissipation | 150 mW |
| Storage Temperature Range | -55 °C to 125 °C |
| Operating Temperature Range | -55 °C to 100 °C |
| Supply Voltage (VEE) | 5 V to 48 V |
| Isolation Resistance | 5 × 10⁹ Ω (at 500 V, 60 % RH) |
All Toshiba TLP180 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the minimum collector‑emitter voltage rating?
The device is rated for a minimum collector‑emitter voltage of 80 V.
What supply voltage range is recommended for the TLP180?
The recommended supply voltage is between 5 V and 48 V.
What is the maximum collector‑emitter voltage rating?
The TLP180 is rated for a minimum collector‑emitter voltage of 80 V.
What isolation voltage does the device provide?
The device provides at least 8750 V of isolation voltage.
