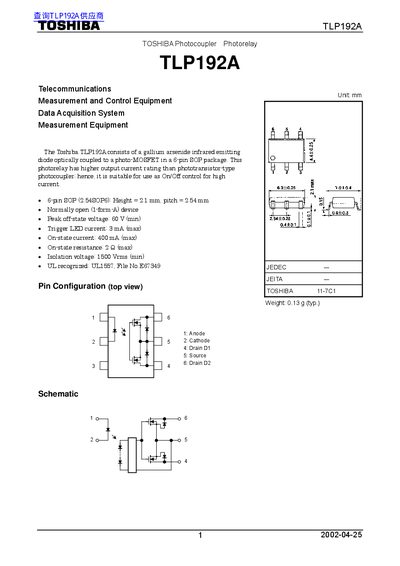

Toshiba TLP192A Photocoupler Datasheet
The TLP192A is a gallium arsenide infrared emitting diode optically coupled to a photo‑MOSFET in a 6‑pin SOP package. It is a normally‑open photorelay designed for on/off control of high‑current loads.
The document lists maximum ratings, electrical and isolation characteristics, switching times, and recommended operating conditions, along with safety and usage restrictions for the component.
Toshiba TLP192A specifications
| Peak off‑state voltage | 60 V (min) |
|---|---|
| On‑state current | 400 mA (max) |
| Isolation voltage | 1500 Vrms (min) |
| Supply voltage Vpp | 48 V |
| Trigger LED current | 3 mA (max) |
All Toshiba TLP192A documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum on‑state current for the TLP192A?
The device can handle up to 400 mA on‑state current (max).
What isolation voltage does the TLP192A meet?
It provides a minimum isolation voltage of 1500 Vrms.
What is the maximum forward current for the TLP192A?
The absolute maximum forward current IF is 50 mA.
What isolation voltage does the TLP192A provide?
The device is rated for a minimum isolation voltage of 1500 Vrms.
What is the maximum on‑state current for the TLP192A?
The maximum on‑state current is 400 mA.
What isolation voltage does the TLP192A provide?
The device is rated for an isolation voltage of 1500 Vrms (minimum).
