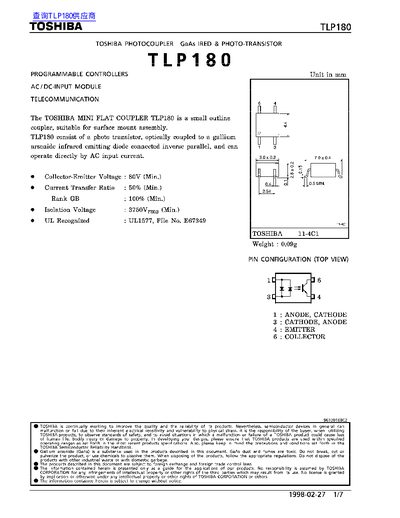

The Toshiba TLP180 is a miniature flat optocoupler that combines a GaAs infrared emitting diode with a photo‑transistor in a surface‑mount package. It is designed for direct AC input operation and provides isolation between input and output circuits.
The document lists maximum ratings, recommended operating conditions, electrical and isolation characteristics, as well as switching performance and pin configuration for designers integrating the device into their circuits.
| Collector‑Emitter Voltage (VCEO) | 80 V (Min) |
|---|---|
| Current Transfer Ratio (CTR) | 50 % (Min) |
| Isolation Voltage | 8750 V (Min) |
| Power Dissipation | 150 mW (Max) |
| Supply Voltage Range | 5 V – 48 V |
The TLP180 is rated for a minimum collector‑emitter voltage of 80 V.
The device provides at least 8750 V of isolation voltage.
A supply voltage between 5 V and 48 V is recommended.
The minimum CTR is 50 %.
