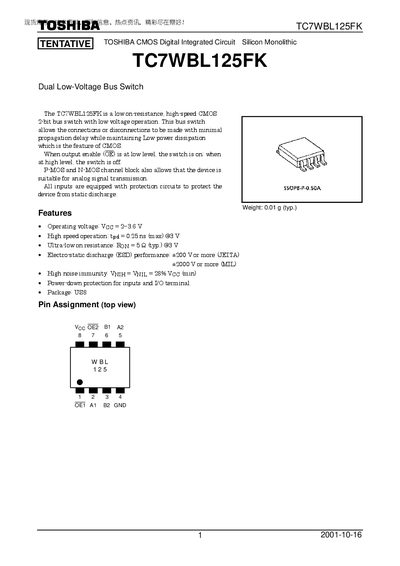

Toshiba TC7WBL125FK Dual Low-Voltage Bus Switch Datasheet
The TC7WBL125FK is a CMOS dual low‑voltage bus switch designed for fast, low‑power signal routing. It features an on‑resistance of about 5 Ω, propagation delay of 0.25 ns at 3 V, and robust electro‑static discharge protection suitable for analog signal transmission.
The device is supplied in an US8 (SSOP8‑P‑0.50A) package, weighs 0.01 g (typ.), and operates over a supply voltage range of –0.5 V to 7 V. Detailed electrical characteristics, maximum ratings, and package dimensions are provided for designers to ensure reliable integration in electronic systems.
Toshiba TC7WBL125FK specifications
| Operating voltage | 2 V ~ 3.6 V |
|---|---|
| Propagation delay (tpd) | 0.25 ns (max) @3 V |
| ESD protection | +200 V (JEITA), +2000 V (MIL) |
| Power supply voltage rating | -0.5 V ~ 7.0 V |
| Switch I/O current (Is) | 128 mA |
| Power dissipation (Pp) | 200 mW |
| Package type | US8 (SSOP8‑P‑0.50A) |
| Weight | 0.01 g (typ.) |
Source: Toshiba TC7WBL125FK Dual Low-Voltage Bus Switch Datasheet
All Toshiba TC7WBL125FK documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the operating voltage range of the TC7WBL125FK?
The device operates from 2 V to 3.6 V supply voltage.
From: Toshiba TC7WBL125FK Dual Low-Voltage Bus Switch Datasheet
How much ESD protection does the TC7WBL125FK provide?
It can withstand at least +200 V (JEITA) and +2000 V (MIL) ESD events.
From: Toshiba TC7WBL125FK Dual Low-Voltage Bus Switch Datasheet
What is the typical operating voltage range for the TC7WBL125FK?
The device operates from 2.0 V to 3.6 V.
From: Toshiba TC7WBL125FK Dual Low-Voltage Bus Switch Datasheet
What is the maximum propagation delay of the bus switch?
The propagation delay is up to 0.25 ns at a 3 V supply.
From: Toshiba TC7WBL125FK Dual Low-Voltage Bus Switch Datasheet
What is the operating voltage range of the TC7WBL125FK?
The device operates from 2 V to 3.6 V.
From: Toshiba TC7WBL125FK Dual Low-Voltage Bus Switch Datasheet
What is the typical on‑resistance of the TC7WBL125FK?
The typical on‑resistance is 5 Ω at 3 V.
From: Toshiba TC7WBL125FK Dual Low-Voltage Bus Switch Datasheet
