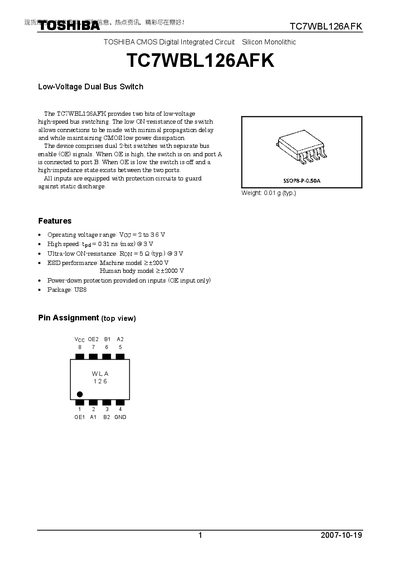

Toshiba TC7WBL126AFK Low-Voltage Dual Bus Switch Datasheet
The TC7WBL126AFK is a low‑voltage dual‑bus switch IC offering two independent 2‑bit switches with separate enable signals. When the enable (OE) input is high, the corresponding switch connects port A to port B; when low, the ports are isolated.
Key specifications include an operating voltage range of 2 V to 3.6 V, a typical propagation delay of 0.31 ns at 3 V, ultra‑low ON‑resistance of about 5 Ω, and a maximum power dissipation of 200 mW. The device is supplied in an SSOP8‑P‑0.50A package and includes ESD protection on inputs.
Toshiba TC7WBL126AFK specifications
| Operating voltage range (Vcc) | 2 V to 3.6 V |
|---|---|
| Propagation delay (tpd) | 0.31 ns (max) @3 V |
| ON‑resistance (Ron) | 5 Ω (typ) @3 V |
| Power dissipation (Pp) | 200 mW |
| Package type | SSOP8‑P‑0.50A |
| Weight | 0.01 g (typ.) |
Source: Toshiba TC7WBL126AFK Low-Voltage Dual Bus Switch Datasheet
All Toshiba TC7WBL126AFK documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the operating voltage range of the TC7WBL126AFK?
The device operates with a supply voltage between 2 V and 3.6 V.
From: Toshiba TC7WBL126AFK Low-Voltage Dual Bus Switch Datasheet
What is the typical propagation delay of the switch?
The typical propagation delay is 0.31 ns at a 3 V supply.
From: Toshiba TC7WBL126AFK Low-Voltage Dual Bus Switch Datasheet
What is the operating voltage range for the TC7WBL126AFK?
The device operates with a supply voltage Vcc from 2 V to 3.6 V.
From: Toshiba TC7WBL126AFK Low-Voltage Dual Bus Switch Datasheet
What is the typical ON‑resistance of the switch?
The typical ON‑resistance is 5 Ω at a 3 V supply.
From: Toshiba TC7WBL126AFK Low-Voltage Dual Bus Switch Datasheet
