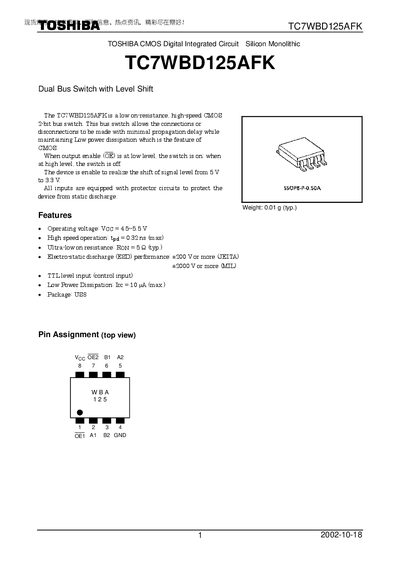

Toshiba TC7WBD125AFK Dual Bus Switch Datasheet
The TC7WBD125AFK is a dual‑bus switch that provides low on‑resistance and high‑speed operation while shifting signal levels from 5 V to 3.3 V. When the output‑enable (OE) pin is low the switch is on, and it turns off when OE is high. All inputs include protection circuits against static discharge.
Key specifications include an operating voltage of 4.5‑5.5 V, typical on‑resistance of 5 Ω, propagation delay up to 0.32 ns, and ultra‑low power dissipation (10 pA). The device is supplied in an SSOP8‑P‑0.50A package and is rated for temperatures from –40 °C to 85 °C (operating) and –65 °C to 150 °C (storage).
Toshiba TC7WBD125AFK specifications
| Operating voltage (Voc) | 4.5 ~ 5.5 V |
|---|---|
| Propagation delay (tpd) | 0.32 ns (max) |
| ESD performance | +2000 V (MIL) |
| Low power dissipation (Icc) | 10 pA (max) |
| Package type | SSOP8‑P‑0.50A |
| Switch I/O current (Is) | 128 mA |
| Power dissipation (Pp) | 200 mW |
All Toshiba TC7WBD125AFK documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the operating voltage range of the TC7WBD125AFK?
The device operates from 4.5 V to 5.5 V.
How fast does the TC7WBD125AFK switch?
Its propagation delay is up to 0.32 ns.
What is the operating voltage range of the TC7WBD125AFK?
The device operates with a supply voltage (Voc) of 4.5 to 5.5 V.
What ESD protection level does the device provide?
It can withstand electro‑static discharge of +2000 V or more (MIL standard).
