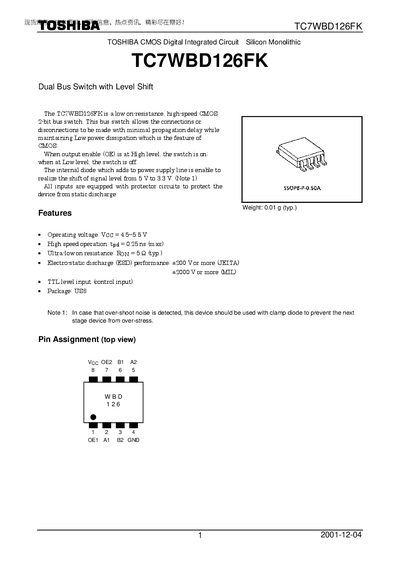

Toshiba TC7WBD126FK Dual Bus Switch Datasheet
The TC7WBD126FK is a low on‑resistance, high‑speed CMOS dual‑bus switch with level‑shift capability, allowing fast connection and disconnection of signals while maintaining low power dissipation. It operates with a supply voltage of 4.5 V to 5.5 V and includes built‑in protection against static discharge.
The datasheet details the device's electrical parameters such as propagation delay, on‑resistance, ESD performance, and power dissipation, as well as mechanical information like package dimensions and recommended operating conditions. It also outlines usage restrictions and reliability guidelines for designers.
Toshiba TC7WBD126FK specifications
| Operating voltage (Voc) | 4.5~5.5 V |
|---|---|
| Propagation delay (tpd) | 0.25 ns (max) |
| ESD performance | +200 V (JEITA), +2000 V (MIL) |
| Continuous channel current (Is) | 128 mA |
| Power dissipation (Pp) | 200 mW |
| Storage temperature (Tsig) | -65~150 °C |
| Operating temperature (Topr) | -40~85 °C |
All Toshiba TC7WBD126FK documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the operating voltage range for the TC7WBD126FK?
The device operates with a supply voltage (Voc) from 4.5 V to 5.5 V.
What are the recommended supply voltage conditions for the device?
The recommended supply voltage (Voc) is 4.5 V to 5.5 V.
What is the operating voltage range of the TC7WBD126FK?
The device operates with a supply voltage (Voc) of 4.5 V to 5.5 V.
What is the typical on‑resistance of the switch?
The typical on‑resistance is 5 Ω.
What is the operating voltage range for the TC7WBD126FK?
The device operates from 4.5 V to 5.5 V.
What is the typical on‑resistance of the TC7WBD126FK?
The typical on‑resistance is 5 Ω.
