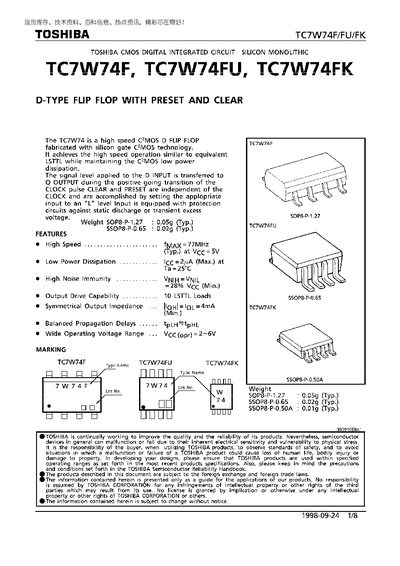

Toshiba TC7W74F/FU/FK D-Type Flip-Flop Datasheet
The TC7W74F/FU/FK is a high‑speed CMOS D‑type flip‑flop with independent preset and clear inputs. It offers low power dissipation, high noise immunity, and can operate at speeds comparable to LSTTL while maintaining CMOS power efficiency.
The document lists maximum ratings, pin assignments, DC and AC electrical characteristics, timing requirements, and package outline drawings for SOP8, SSOP8 and SSOP8‑0.50A variants. Key parameters such as supply voltage range, operating voltage, power dissipation, and maximum clock frequency are detailed for designers.
Toshiba TC7W74F specifications
| Supply Voltage Range | -0.5 to 7 V |
|---|---|
| Operating Voltage Range | 2 to 6 V |
| Power Dissipation | 300 mW |
| Output Drive Capability | 10 LSTTL loads |
| Low Power Dissipation | 24 µA (max) |
All Toshiba TC7W74F documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the supply voltage range for the TC7W74F/FU/FK?
The device can be powered with a supply voltage ranging from –0.5 V to 7 V.
What is the typical power dissipation?
Typical power dissipation is 300 mW.
What is the maximum operating frequency of the TC7W74F/FU/FK?
The device can operate up to 77 MHz.
What supply voltage range does the TC7W74F/FU/FK support?
It supports a supply voltage from 2 V to 6 V.
What supply voltage range does the TC7W74 operate at?
The device operates with a supply voltage (VCC) between 2 V and 6 V.
From: Toshiba TC7W74F/TC7W74FU/TC7W74FK D-Type Flip Flop Datasheet
What is the maximum clock frequency for the TC7W74 series?
The maximum clock frequency is up to 77 MHz.
From: Toshiba TC7W74F/TC7W74FU/TC7W74FK D-Type Flip Flop Datasheet
