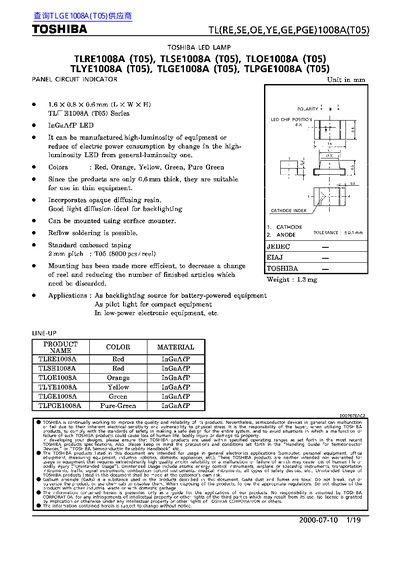

TOSHIBA TL(RE SE OE YE GE PGE)1008A(T05) handbook

About this manual

The Toshiba TL1008A series includes six LED lamp variants (TLRE, TLSE, TLOE, TLYE, TLGE, TLPGE) offering colors such as red, orange, yellow, green and pure‑green. The devices are thin (0.6 mm) and use InGaAlP chips for high luminosity and low power consumption, suitable for backlighting and pilot‑light applications.

The document provides maximum ratings, forward voltage and current characteristics, luminous intensity, peak emission wavelengths, radiation patterns, and detailed packaging information including reel dimensions, leader/trailer lengths, and packing method (silica‑gel sealed aluminum packs).

What's inside

• Maximum Ratings
• Electrical Characteristics
• Optical Characteristics
• Radiation Pattern
• Reel Dimensions
• Packing Form
• Notation Method
• Handling Guide

Specifications

Frequently asked questions

What is the maximum forward current for TLRE1008A?

The maximum forward current for TLRE1008A is 60 mA.

How many devices are packed per reel for the TL1008A series?

Each reel contains 8 000 devices.

What colors are available for the TL1008A LED lamps?

The TL1008A series is offered in red, orange, yellow, green and pure‑green.

What safety precaution is mentioned regarding GaAs in these devices?

GaAs dust and fumes are toxic; the product should not be broken, cut, pulverized, or disposed with regular waste.
