Key facts
- Brand
- ROHM
- Model
- MCH18
- Industry
- Industrial
- Documents
- 2
- Languages
- EN
- Last added
- 2012-06-06
Start here

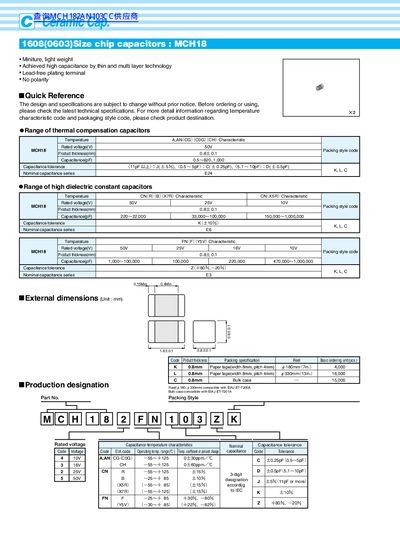

Ceramic MCH18 1608(0603)Size chip capacitors
Datasheet 6 pages · 823 KB · EN
The document provides technical data for the MCH18 series of multilayer ceramic capacitors (MLCCs), which are designed to be miniature and lightweight. The product line includes thermal compensation capacitors with characteristics A, AN, CG, CH, CN, FN, and high dielectric constant types.
Read onlineROHM MCH18 specifications
| Rated voltage | 50V, 25V, 16V, or 10V depending on type |
|---|---|
| Capacitance range (Thermal compensation) | 0.5~820 pF |
| Capacitance range (High dielectric constant) | 220~1,000,000 pF |
All ROHM MCH18 documents by type
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the nominal capacitance series for thermal compensation capacitors?
The nominal capacitance series is E24.
Are these capacitors lead-free?
Yes, they feature lead-free plating terminals.
What is the rated voltage for MCH18 thermal‑compensation capacitors?
The rated voltage is 50 V.
What packaging formats are available for MCH18 capacitors?
MCH18 capacitors are offered on 180 mm and 330 mm plastic reels as well as in bulk cases.
