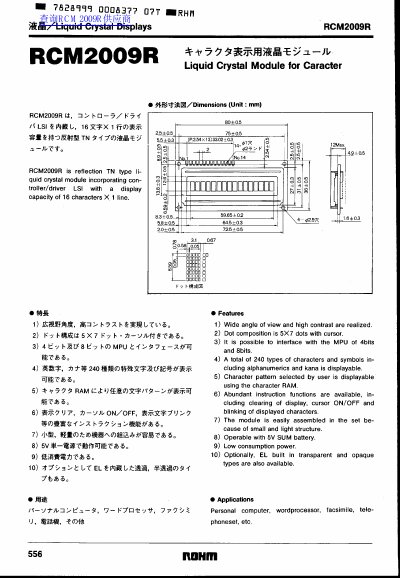

ROHM RCM2009R Liquid Crystal Module Datasheet
Datasheet 8 pages · 485 KB · EN
The document describes the RCM2009R, a reflection TN type liquid crystal module that incorporates a controller/driver LSI. It features a display capacity of 16 characters by 1 line and utilizes a dot composition of 5x7 dots with a cursor. The module supports interface compatibility with both 4-bit and 8-bit microprocessors (MPU).
Read onlineROHM RCM2009R specifications
| Display Type | Reflection TN type |
|---|---|
| Dot Composition | 5X7 dots with cursor |
| Character Types | 240 types |
All ROHM RCM2009R documents by type
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the dot composition of the RCM2009R?
The module uses a dot composition of 5x7 dots with a cursor.
Which microprocessors can this module interface with?
It can interface with MPUs that are either 4-bit or 8-bit.
What is the maximum outline height of the RCM2009R module?
The maximum outline height is 5.76 mm.
