ROHM 2SD2653 Datasheet

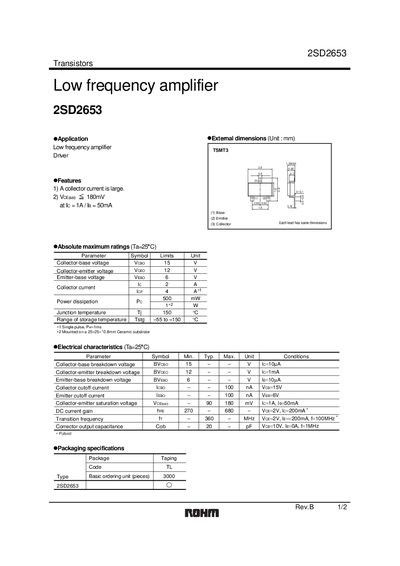

The 2SD2653 (also referenced as 28D2653) is a low‑frequency amplifier transistor offered by ROHM. It is intended for use in audio‑visual equipment, office‑automation devices, communications gear, and other electronic applications.
The document lists absolute maximum ratings, detailed electrical characteristics, and packaging specifications, including voltage limits, current capabilities, power dissipation, and typical gain and frequency performance. It also contains characteristic curves and legal notices regarding export control and usage restrictions.
ROHM 2SD2653 specifications
| Collector‑base voltage (Vcbo) | 15 V |
|---|---|
| Collector‑emitter voltage (Vceo) | 12 V |
| Emitter‑base voltage (Vebo) | 6 V |
| Collector current (Ic) | 2 A |
| Power dissipation (Pd) | 200 mW |
| Junction temperature (Tj) | 150 °C |
| Storage temperature range | -55 °C to +150 °C |
| Transition frequency (fT) | 360 MHz |
| DC current gain (hFE) | 270‑680 |
Source: ROHM 2SD2653K Datasheet
