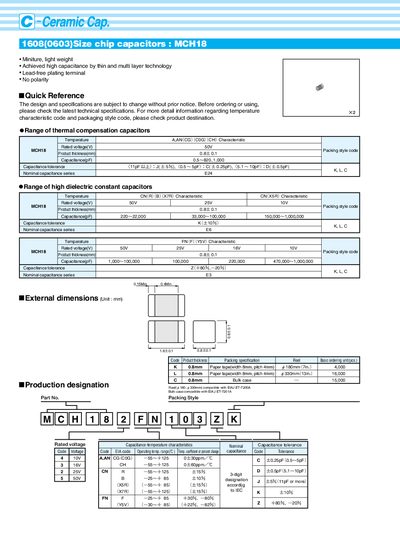

MCH18 is a series of 1608(0603) size chip capacitors with high capacitance and small size. It is characterized by miniature, light weight, high capacitance achieved by thin and multi layer technology, lead-free plating terminal and no polarity.
This document lists the technical data for ROHM's MCH18 series of multilayer ceramic chip capacitors. It includes capacitance ranges, rated voltage, tolerance, temperature characteristics, and packaging details for both thermal‑compensation and high‑dielectric‑constant variants.
Packaging information such as reel dimensions, bulk case sizes, and paper‑tape pull directions are provided, along with contact details for ROHM sales offices worldwide. The data are intended for use in ordinary electronic equipment, with a disclaimer for safety‑critical applications.
| Capacitance range (thermal compensation) | 0.5 ~ 820 pF, 1 000 pF |
|---|---|
| Rated voltage (thermal compensation) | 50 V |
| Reel size | 180 mm and 330 mm plastic reels |
The rated voltage is 50 V.
MCH18 capacitors are offered on 180 mm and 330 mm plastic reels as well as in bulk cases.
