Key facts
- Brand
- ROHM
- Model
- BD3538F
- Category
- Other Electronics
- Documents
- 2
- Languages
- EN
- Last added
- 2012-06-04
Start here

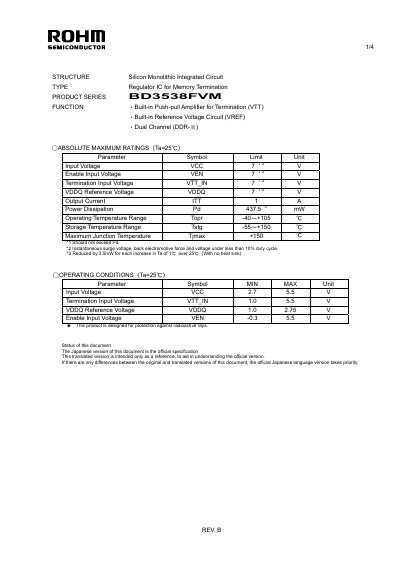

ROHM BD3538FVM handbook
The BD3S538FVM is a regulator IC for memory termination that integrates a push‑pull amplifier, reference voltage circuit, and dual‑channel termination. It is intended for use in audio‑visual, office‑automation, communication, and electronic appliance equipment.
The document lists absolute maximum ratings, operating conditions, electrical characteristics, pin assignments, mechanical dimensions, and detailed notes on grounding, thermal design, and recommended external components such as output and input capacitors.
ROHM BD3538F specifications
| Input Voltage VCC (operating range) | 2.7 – 5.5 V |
|---|---|
| Termination Input Voltage VTT_IN (operating range) | 1.0 – 5.5 V |
| Output Current ITT (absolute max) | 1 A |
| Power Dissipation Pd (absolute max) | 437.5 mW |
| Standby Current IST | 0.5 – 1.0 mA |
| Bias Current ICG | 2 – 4 mA |
Source: ROHM BD3538FVM handbook
All ROHM BD3538F documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the UVLO OFF voltage and its hysteresis?
The UVLO OFF voltage is typically 2.40 V (range 2.40‑2.70 V) with a hysteresis of about 100‑220 mV.
From: ROHM BD3538FVM handbook
What is the recommended input voltage range for VCC?
The device operates with VCC between 2.7 V and 5.5 V.
How much sink/source current can the VTT output provide?
The VTT output can source or sink up to 1.0 A.
