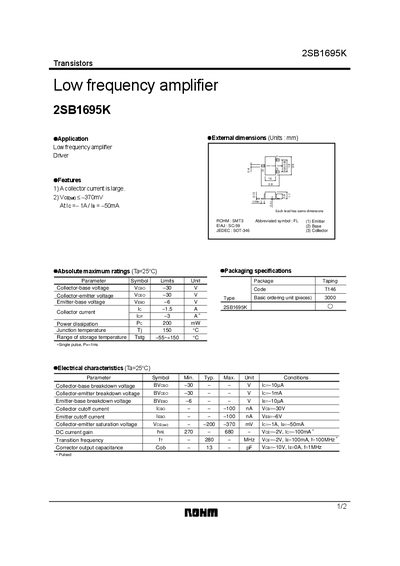

ROHM 2SB1695K Datasheet
This document describes the ROHM 2SB1695K transistor, a low‑frequency amplifier device. It lists the package types (SMT3, SC‑59, SOT‑346) and outlines its intended applications and key features such as a large collector current.
Detailed electrical parameters are given, including absolute maximum ratings, typical performance curves, and recommended operating conditions. The appendix contains legal notices and export‑control information.
ROHM 2SB1695 specifications
| Collector‑base voltage (VCEO) | -30 V |
|---|---|
| Collector‑emitter voltage (VCEO) | 30 V |
| Emitter‑base voltage (VEBE) | -6 V |
| Power dissipation (Pc) | 200 mW |
| Junction temperature (TJ) | 150 °C |
| Storage temperature range | -55 °C to +150 °C |
| DC current gain (hFE) | 270 – 680 |
| Transition frequency (fT) | 280 MHz |
Source: ROHM 2SB1695K Datasheet
All ROHM 2SB1695 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum collector‑base voltage for the 2SB1695K?
The maximum collector‑base voltage is –30 V.
From: ROHM 2SB1695K Datasheet
How much power can the 2SB1695K dissipate safely?
It can safely dissipate up to 200 mW.
From: ROHM 2SB1695K Datasheet
What is the maximum collector current for the 2SB1695?
The maximum collector current is 15 A.
What is the power dissipation rating of the 2SB1695?
The device can dissipate up to 500 mW.
