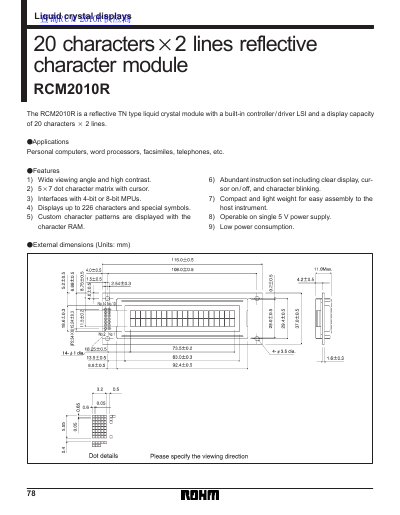

ROHM RCM2010R Reflective LCD Module Datasheet
Datasheet 8 pages · 156 KB · EN
The ROHM RCM2010R is a reflective TN type liquid crystal module featuring a built-in controller/driver LSI. It supports a display capacity of 20 characters x 2 lines with a 5x7 dot character matrix and cursor. The module interfaces with 4-bit or 8-bit MPUs and operates on a single 5 V power supply.
Read onlineROHM RCM2010R specifications
| Display Capacity | 20 characters x 2 lines |
|---|---|
| Character Matrix | 5x7 dot |
| Viewing Angle | 40 deg |
| Contrast Ratio | 3 to 6 |
| Power Supply Voltage | 5 V |
| Operating Temperature | 0 to 50 C |
| Storage Temperature | -20 to 70 C |
| Power Supply Current | 15 mA |
All ROHM RCM2010R documents by type
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the interface data length supported?
The module supports data transfer with two transmissions of 4 bits at a time or one transmission of 8 bits.
How long does initialization take?
The busy flag remains in the busy condition until initialization is completed, which takes 15 ms.
What is the maximum outline height of the RCM2009R module?
The maximum outline height is 5.76 mm.
