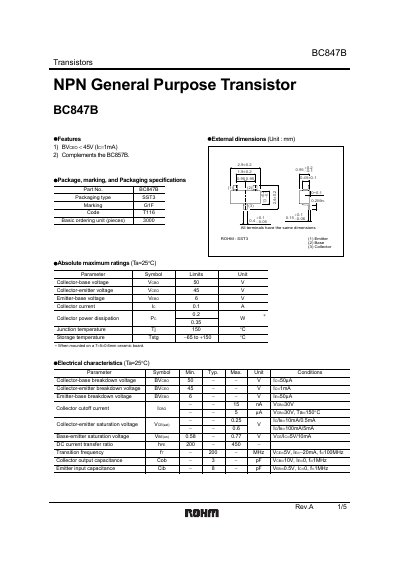

ROHM BC847B Transistor Datasheet
The BC847B is an NPN general‑purpose transistor with a collector‑emitter voltage rating of 45 V and a collector current capability up to 100 mA. It is offered in a compact SST3 (SOT‑23) package and is intended for a wide range of electronic circuit applications.
The document lists absolute maximum ratings, detailed electrical parameters such as VCEO, VCB0, VBE0, and hFE values, as well as characteristic curves for current gain, saturation voltage, and noise performance. An appendix contains usage notes and export control information. This manual is written in Chinese.
All ROHM BC847B documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum collector‑emitter voltage for the BC847B?
The maximum collector‑emitter voltage is 45 V.
What is the typical DC current gain (hFE) of the BC847B at a collector current of 1 mA?
The typical DC current gain is about 280 at Ic = 1 mA.
What is the maximum collector‑emitter voltage for the BC847B and BC847C transistors?
The collector‑emitter breakdown voltage is less than 45 V when the collector current is 1 mA.
From: ROHM BC847B / BC847C NPN General Purpose Transistor Datasheet
