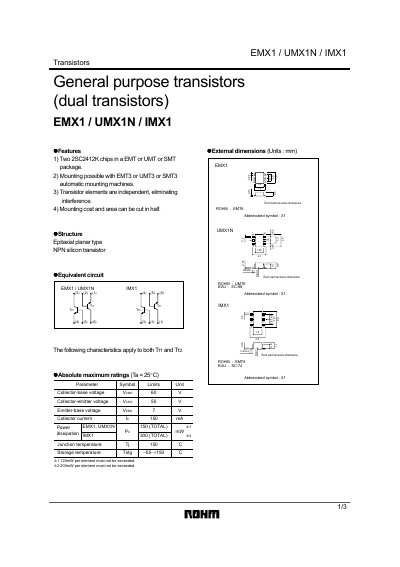

ROHM EMX1/UMX1N/IMX1 Bipolar Transistor Datasheet
The ROHM EMX1/UMX1N/IMX1 series are general‑purpose dual NPN silicon transistors offered in EMT, UMT and SMT packages. The document lists key features such as independent transistor elements, reduced mounting cost and area, and provides the equivalent circuit.
Detailed specifications cover absolute maximum ratings, external dimensions, electrical characteristics, and packaging information. An appendix notes usage restrictions for high‑reliability applications and export control considerations. This manual is written in Chinese.
ROHM IMX1 specifications
| Collector‑base voltage (V_CBO) | 60 V |
|---|---|
| Maximum junction temperature (Tj) | 150 °C |
| Storage temperature range (Tstg) | -55 °C to +150 °C |
| Power dissipation per element (EMX1) | 120 mW |
| Power dissipation per element (IMX1) | 200 mW |
| Package code (EMX1) | EMT6 |
| Package code (UMX1N) | UMT6 |
| Package code (IMX1) | SMT6 |
