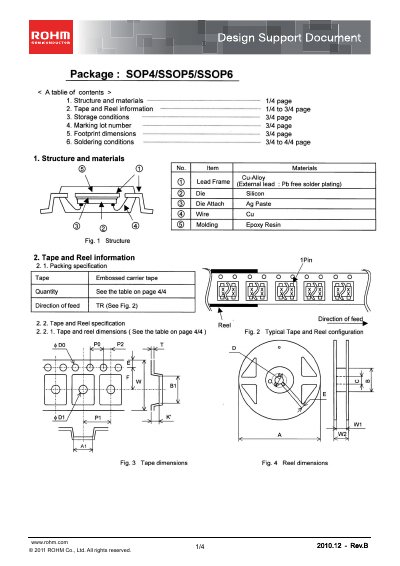

ROHM SOP4/SSOP5/SSOP6 Package Design Support Document
This design support document describes the structure, materials, and handling requirements for ROHM's SOP4, SSOP5, and SSOP6 surface‑mount packages. It includes detailed information on tape‑and‑reel packaging, storage conditions, marking, footprint dimensions, and recommended soldering processes.
Key sections cover package structure, tape and reel specifications, recommended storage temperature (5‑30 °C) and humidity (40‑70 % RH), a one‑year storage period, footprint dimensions (e.g., 0.65 mm pitch for SOP4), and soldering profiles for reflow, wave, and solder‑iron methods.
ROHM SOP4 specifications
| Package types | SOP4, SSOP5, SSOP6 |
|---|---|
| Maximum storage period | 1 year |
| Reflow preheat temperature (max) | 260 °C |
| Reflow soldering temperature range | 220 °C to 230 °C |
| Solder‑iron temperature limit | ≤ 380 °C |
Source: ROHM SOP4/SSOP5/SSOP6 Package Design Support Document
All ROHM SOP4 documents by type
Questions answered in these manuals
Is the SOP4 package designed to be radiation tolerant?
No, the products specified in this document are not designed to be radiation tolerant.
What is required to view the 3D content in the document?
A 3D‑enabled browser is required to view the content.
