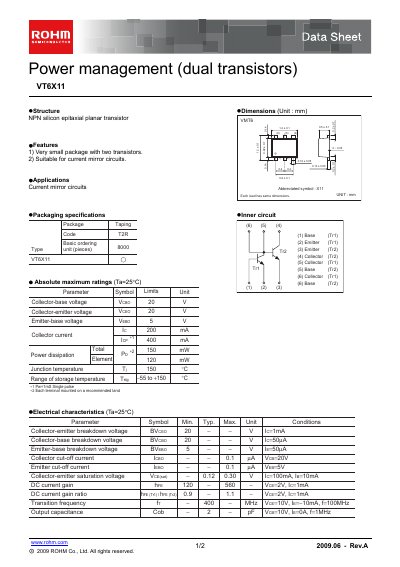

ROHM VT6X11 Datasheet
The VT6X11 is a very small dual NPN silicon epitaxial planar transistor offered by ROHM. It is designed for current‑mirror circuits and other low‑power applications, featuring a compact six‑lead package (code T2R).\n\nThe datasheet lists absolute maximum ratings such as 20 V collector‑base voltage, 200 mA collector current, and 150 mW power dissipation, as well as typical electrical parameters like a DC current gain of 120‑560 and a transition frequency of 400 MHz. Application notes and typical characteristic curves are also included.
Read onlineROHM VT6X1 specifications
| Collector‑base voltage (Vcbo) | 20 V |
|---|---|
| Collector‑emitter voltage (Vceo) | 20 V |
| Emitter‑base voltage (Vebo) | 5 V |
| Collector current (Ic) | 200 mA |
| Peak collector current (IcP) | 400 mA |
| Junction temperature (Tj) | 150 °C |
| Storage temperature range | -55 °C to +150 °C |
| Transition frequency (ft) | 400 MHz |
| DC current gain (hFE) | 120‑560 |
| Collector‑emitter saturation voltage (VCE(sat)) | 0.12 V – 0.30 V |
Source: ROHM VT6X11 Datasheet
All ROHM VT6X1 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum collector current rating for the VT6X11?
The absolute maximum collector current is 200 mA (Ic) and the peak collector current is 400 mA (IcP).
From: ROHM VT6X11 Datasheet
What package does the VT6X11 use?
It uses a very small six‑lead package with two transistors, identified by the ordering code T2R.
From: ROHM VT6X11 Datasheet
What is the maximum collector‑emitter voltage?
The VT6X1 can withstand up to 20 V between collector and emitter.
What applications is the VT6X1 suitable for?
It is intended for switch and LED driver circuits.
