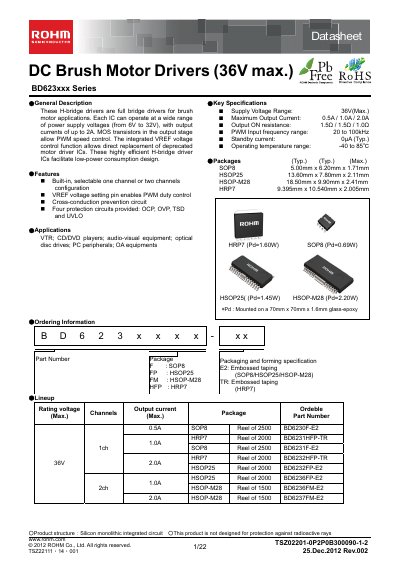

ROHM BD6231HFP Datasheet
The BD6231HFP is a full‑bridge H‑bridge driver IC for brush motor applications. It operates from a wide supply voltage range (6 V to 32 V recommended, up to 36 V max) and delivers up to 2 A output current with selectable single‑ or dual‑channel configurations. Integrated features include PWM speed control, VREF voltage setting, and four protection circuits (OCP, OVP, TSD, UVLO).
Key specifications such as supply voltage, output current, PWM frequency, and operating temperature are listed, along with package options (SOP8, HSOP25, HSOP‑M28, HRP7). The datasheet also contains typical performance curves, pin‑out diagrams, and mounting precautions for reliable PCB design.
ROHM BD6231 specifications
| Supply voltage (max) | 36 V |
|---|---|
| Recommended supply voltage | 6 V to 32 V |
| Maximum output current | 0.5 A / 1.0 A / 2.0 A |
| PWM input frequency range | 20 kHz to 100 kHz |
| Operating temperature range | -40 °C to +85 °C |
| Protection circuits | OCP, OVP, TSD, UVLO |
| Package dimensions (SOP8) | 5.00 mm × 6.20 mm × 1.71 mm |
