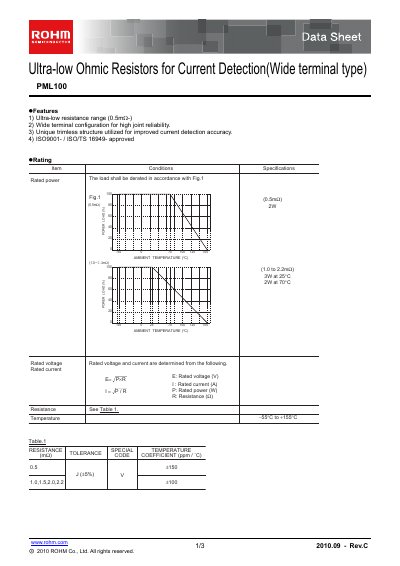

ROHM PML100 Ultra‑low Ohmic Resistor Data Sheet
The PML100 series are ultra‑low resistance resistors (0.5 mΩ‑) with a wide terminal configuration for high joint reliability and a trim‑less structure that improves current‑detection accuracy. They are ISO‑9001 and ISO/TS 16949 approved.
The sheet lists electrical ratings, temperature limits, packaging details and dimensional data. Rated power is 3 W at 25 °C (derated to 2 W at 70 °C). The resistors operate from –55 °C to +155 °C and have a typical tolerance of ±5 %. Standard packaging is a 180 mm reel compatible with JEITA ET‑7200B standards.
ROHM PML10 specifications
| Resistance range | 0.5 mΩ‑ |
|---|---|
| Operating temperature | -55 °C to +155 °C |
| Rated power (25 °C) | 3 W |
| Rated power (70 °C) | 2 W |
| Resistance tolerance | ±5 % |
| Packaging | 180 mm reel, JEITA ET‑7200B compatible |
